Changing ESG/DLR Tenant After Deployment

Using NSX REST API calls to modify ESG/DLR configuration that isn’t exposed in the UI.

If you are reading this post, you’ve probably already come to the realization that the ‘Tenant’ field for ESGs can’t be changed in the UI. Once the appliance is deployed, this string value appears set in stone.

changetenant-1

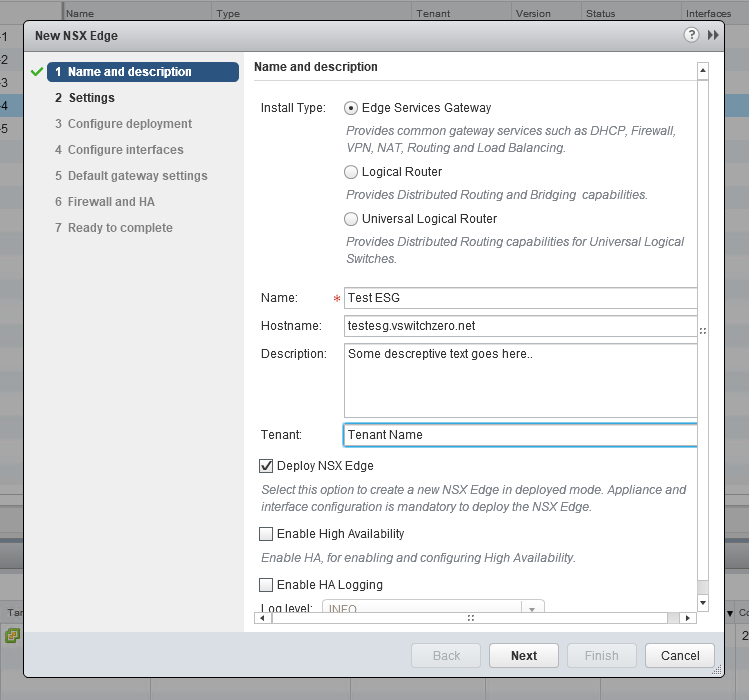

Adding the Tenant and Description are easy during deployment, but can’t be changed in the UI after deployment.

Although it can’t be modified in the UI without creating a new appliance from scratch, it’s pretty easy to modify this field via REST API calls. After having come across a question on the VMware communities forum regarding this, I thought I’d write a quick post on the process.

Step 1: Retrieve the ESG/DLR Configuration

First, you’ll need to do a GET call to retrieve the current ESG/DLR configuration in XML format. I won’t cover the basics of REST API calls in this post as the topic is well covered elsewhere. If you’ve never done REST API calls before, I’d recommend doing some reading on the subject before proceeding.

I’ll be using the popular Postman utility for this. First, we’ll need to find the moref identifier of the ESG/DLR in question.

changetenant-2

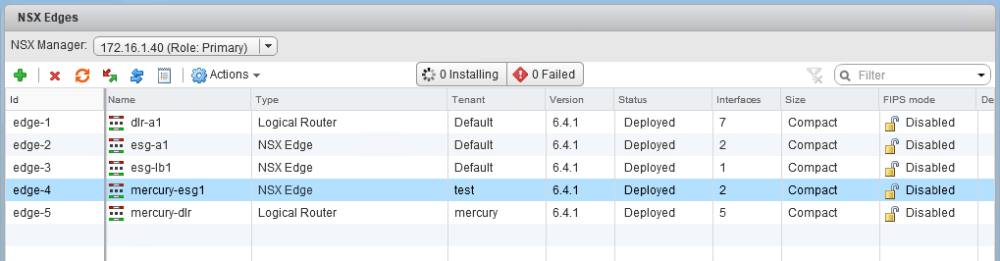

We’re interested in mercury-esg1, which is edge-4 in my lab environment.

You can easily find this from the ‘Edges’ view in the UI. In my case, I want to modify the edge called mercury-esg1, which is edge-4. Notice that someone put the string ‘test’ in as the tenant, which we want to change to ‘mercury’.
From Postman, we’ll run the following API call to retrieve edge-4’s configuration:

GET https://<nsxmgrip>/api/4.0/edges/edge-4

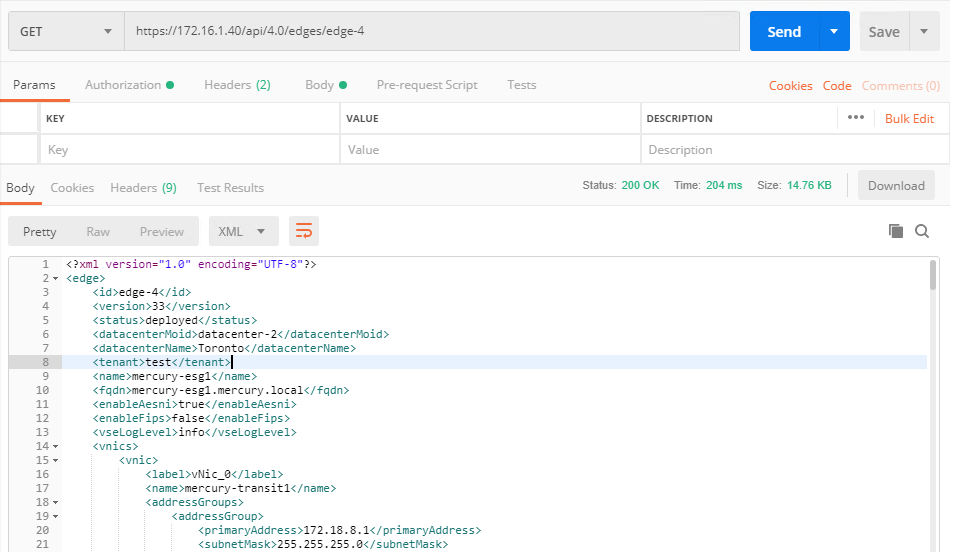

I got a 200 OK response, with all the config in XML format returned.

changetenant-3
All of the ESG’s configuration was returned in XML format. This is everything needed to recreate or modify the appliance.

Step 2: Make the Necessary Changes

Next, I’ll copy and paste all the returned XML data into a text editor. The XML section for the tenant string is right near the top:

<edge>
    <id>edge-4</id>
    <version>32</version>
    <status>deployed</status>
    <datacenterMoid>datacenter-2</datacenterMoid>
    <datacenterName>Toronto</datacenterName>
    <tenant>test</tenant>
...

I will simply change <tenant>test</tenant> to <tenant>mercury</tenant>.

Step 3: Apply the Modified Configuration

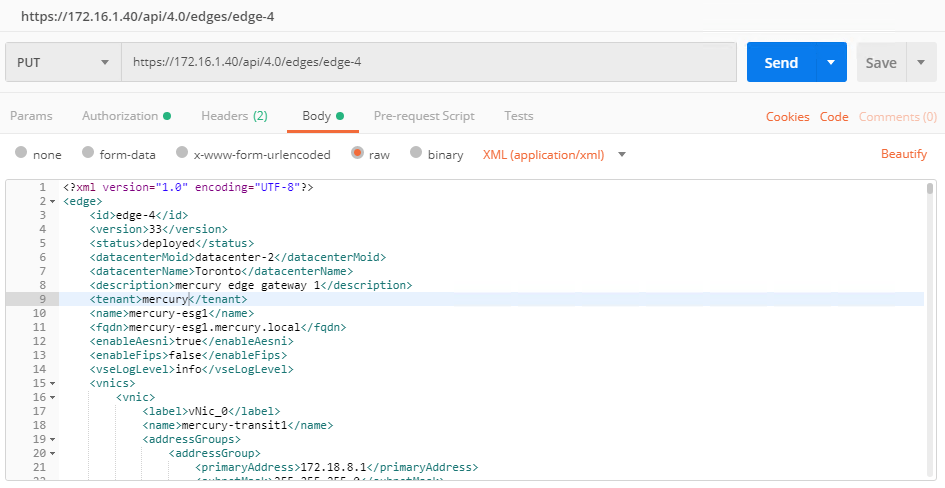

The final step is to take your modified XML configuration data and apply it back to the ESG/DLR in question. This is as simple as changing your REST API call from GET to PUT and pasting the modified configuration into the ‘Body’ of the call.

changetenant-4
Be sure to double check your configuration before sending the PUT call!

If your call was successful, you should get a 204 No Content response.

changetenant-5

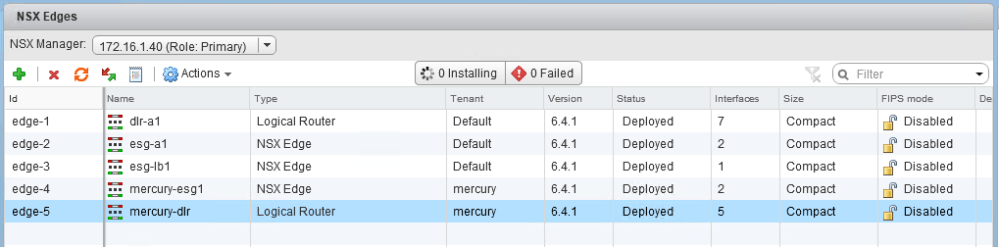

And there you have it – the tenant field has been updated. Unfortunately, I haven’t had any success updating the description field via API. The <description> tag appears to be ignored in this PUT call for some reason. If anyone has any success with this, please let me know.

PowerNSX Alternative

If you prefer using PowerNSX to API calls, the Set-NsxEdge cmdlet can also work. The cmdlet uses the same API calls behind the scene, but can be quicker to execute:

PS C:\Users\mike.VSWITCHZERO> $edge = get-nsxedge mercury-esg1
PS C:\Users\mike.VSWITCHZERO> $edge.tenant = "hello"
PS C:\Users\mike.VSWITCHZERO> set-nsxedge $edge

Edge Services Gateway update will modify existing Edge configuration.
Proceed with Update of Edge Services Gateway mercury-esg1?
[Y] Yes [N] No [?] Help (default is "N"): y


id : edge-4
version : 37
status : deployed
datacenterMoid : datacenter-2
datacenterName : Toronto
tenant : hello
name : mercury-esg1
fqdn : mercury-esg1.mercury.local
enableAesni : true
enableFips : false
vseLogLevel : info
vnics : vnics
appliances : appliances
cliSettings : cliSettings
features : features
autoConfiguration : autoConfiguration
type : gatewayServices
isUniversal : false
hypervisorAssist : false
tunnels :
edgeSummary : edgeSummary
