Using the Upgrade Coordinator in NSX 6.4

If you’ve ever gone through an NSX upgrade, you know how many components there are to upgrade. You’ve got your NSX manager appliances, control cluster, ESXi host VIBs, edges, DLR and even guest introspection appliances. In the past, every one of these needed to be upgraded independently and in the correct order.

VMware hopes to make this process a lot more straight forward with the release of the new ‘Upgrade Coordinator’ feature. This is now included as of 6.4.0 in the HTML5 client.
The aim of the upgrade coordinator is to create an upgrade plan or checklist and then to execute this in the correct order. There are many aspects of the upgrade plan than can be customized but for those looking for maximum automation – a single click upgrade option exists as well.

It is important to note that although the upgrade coordinator helps to take some of the guess work out of upgrading, there are still tasks and planning you’ll want to do ahead of time. If you haven’t already, please read my Ten Tips for a Successful NSX Upgrade post.

Today I’ll be using the upgrade coordinator to go from 6.3.3 to 6.4.0 and walk you through the process.

Upgrading NSX Manager

Although the upgrade coordinator plan covers numerous NSX components, NSX manager is not one of them. You’ll still need to use the good old manager UI upgrade process as described on page 36 of the NSX 6.4 upgrade guide. Thankfully, this is the easiest part of the upgrade.

You’ll also notice that I can use the upgrade coordinator for my lab upgrade even though I’m at a 6.3.x release currently. This is because the NSX manager is upgraded first, adding this management plane functionality to be used for the rest of the upgrade.

Note: If you are using a Cross-vCenter deployment of NSX, be sure to upgrade your primary, followed by all secondary managers before proceeding with the rest of the upgrade.

upgco-1

Upgrading NSX Manager to 6.4.x should look very familiar as the process really hasn’t changed. Be sure to heed the warning banner about taking a backup before proceeding. For more info on this, please see my Ten Tips for a Successful NSX Upgrade post.

Continue reading

NSX 6.4.0 Upgrade Compatibility

Thinking about upgrading to NSX 6.4.0? As I discussed in my recent Ten Tips for a Successful NSX Upgrade post, it’s always a good idea to do your research before upgrading. Along with reading the release notes, checking the VMware compatibility Matrix is essential.

VMware just updated some of the compatibility matrices to include information about 6.4.0. Here are the relevant Links:

From an NSX upgrade path perspective, you’ll be happy to learn that any current build of NSX 6.2.x or 6.3.x should be fine. At the time of writing, this would be 6.2.9 and earlier as well as 6.3.5 and earlier.

640upg-0

NSX upgrade compatibility – screenshot from 1/17/2018.

On a positive note, VMware required a workaround to be done for some older 6.2.x builds to go to 6.3.5, but this is no longer required for 6.4.0. The underling issue that required this has been resolved.

From a vCenter and ESXi 6.0 and 6.5 perspective, the requirements for NSX 6.4.0 remain largely unchanged from late 6.3.x releases. What you’ll immediately notice is that NSX 6.4.0 is not supported with vSphere 5.5. If you are running vSphere 5.5, you’ll need to get to at least 6.0 U2 before considering NSX 6.4.0.

From the NSX 6.4.0 release notes:

Supported: 6.0 Update 2, 6.0 Update 3
Recommended: 6.0 Update 3. vSphere 6.0 Update 3 resolves the issue of duplicate VTEPs in ESXi hosts after rebooting vCenter server. See VMware Knowledge Base article 2144605 for more information.

Supported: 6.5a, 6.5 Update 1
Recommended: 6.5 Update 1. vSphere 6.5 Update 1 resolves the issue of EAM failing with OutOfMemory. See VMware Knowledge Base Article 2135378 for more information.

Note: vSphere 5.5 is not supported with NSX 6.4.0.

It doesn’t appear that the matrix has been updated yet for other VMware products that interact with NSX, such as vCloud Director.

Before rushing out to upgrade to NSX 6.4.0, be sure to check for compatibility – especially if you are using any third party products. It may be some time before other vendors certify their products for 6.4.0.

Stay tuned for a closer look at some of the new NSX 6.4.0 features!



Ten Tips for a Successful NSX Upgrade

As you’ve probably noticed, VMware is regularly releasing new NSX versions and updates to introduce new features and to improve stability and scalability. Eventually, you’ll find yourself in a situation where you’ll either want or need to upgrade. Maybe you want to take advantage of some new features, encountered a problem or your version isn’t supported any more. Whatever the reason, and whatever the version, here are ten tips that will help to ensure your upgrade is successful!

Tip 1 – Check The Compatibility Matrix

Before getting started, you’ll want to thoroughly check the compatibility of your target NSX version. That doesn’t just mean checking if you can upgrade from version X to version Y, but rather to check everything that interacts with NSX in the environment.

Start with the NSX Upgrade Path found at the VMware Interoperability Matrices page. There you may be surprised to find that there are several versions of NSX that are not a feasible upgrade path. For example, you can’t upgrade from NSX 6.2.8 to 6.3.2, nor can you upgrade from 6.2.6 to 6.3.1.

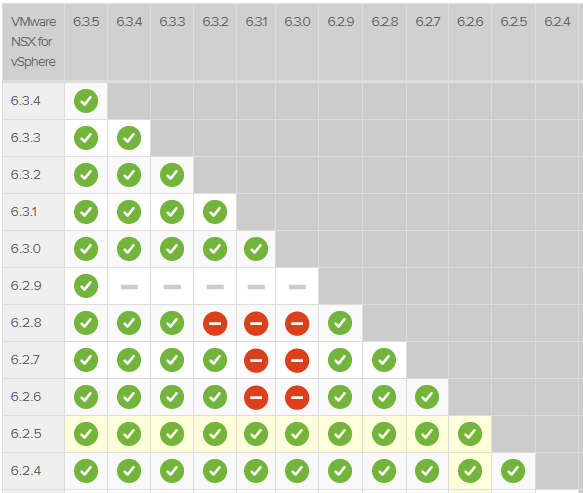

nsxupgtips-1

Taken from the NSX Upgrade Path on VMware’s website.

Once you’ve confirmed that your target version is supported in the upgrade path, you’ll want to look at the Interoperability Matrix to ensure products like vSphere and Cloud Director are compatible. Again, there are several incompatible releases that you may not expect. For example, NSX 6.3.3 and later releases aren’t compatible with vCenter Server 6.0 U1 and older, but are compatible with all releases of 5.5. Another example is the initial release of vSphere 6.5. Only 6.5a or later can be used with any version of NSX 6.3.x.

Continue reading

No NSX Managers Listed in the Web Client

If you are new to NSX or looking to evaluate it in the lab, there is one very common issue that you may run into. After going through the initial steps of deploying and registering NSX Manager with vCenter, you may be surprised to find that there are no manageable NSX managers listed under ‘Networking and Security’ in the Web Client. Although the registration and Web Client plugin installation appears successful, there is often an extra step needed before you can manage things.

One of the first tasks involved in deploying NSX is to register NSX Manager with a vCenter Server. This is done for inventory management and synchronization purposes. The NSX Manager can be optionally registered with SSO as well.

nsx-icon-1

In my lab, I’ve used the SSO administrator account for registration.

The vCenter user that is used for registration needs to have the highest level of privileges for NSX to work correctly. The NSX install guide clearly states that this must be the vCenter ‘Administrator’ role.

From the NSX Install Guide:

“You must have a vCenter Server user account with the Administrator role to synchronize NSX Manager with the vCenter Server. If your vCenter password has non-ASCII characters, you must change it before synchronizing the NSX Manager with the vCenter Server.”

Because of these requirements, it’s quite common to use the SSO administrator account – usually administrator@vsphere.local. A service account is also often created for this purpose to more easily identify and distinguish NSX tasks. Either way, these are not normally accounts that you’d use for day-to-day administration in vSphere.

By default, NSX will only assign its ‘Enterprise Administrator’ role to the user account that was used to register it with vCenter Server. This means that by default, only that specific vCenter user will have access to the NSX manager from within the Web Client.

That said, if you are experiencing this problem, you are probably not logged in with the vCenter user that was used for registration purposes. To grant access to other users, you’ll need to log into the vSphere Web Client using the registration user account, and then add additional users and groups.

In my lab, I’ve just logged in with an active directory user called ‘test@lab.local’. This user has full administrator privileges in vCenter, but has no access to any NSX Managers:

nsx-icon-3

No managers to manage!

If I log out, and log back in with the administrator@vsphere.local account that was used for vCenter registration, I can see the NSX managers that were registered.

nsx-icon-4

In my lab, I’ve got a secondary deployed as well, but we’ll focus only on 172.16.10.40. If I click on that manager in the list, I’m able to go to the ‘Users’ tab to see what the default permissions look like:

nsx-icon-5

As you can see, only one user – the SSO administrator account used for registration – has the requisite role for administrator via the Web Client. In my lab, I want to provide full access to an AD group called ‘VMware Admins’ and an individual user called ‘Test’.

nsx-icon-6

Both vCenter users and groups can be specified here. As long as vCenter can authenticate them – either via SSO, local authentication or even AD – they are fair game.

nsx-icon-7

Another common mistake made is selecting the NSX Administrator role rather than Enterprise Administrator. NSX Administrator sounds like the highest privilege level, but it’s actually Enterprise Administrator that gives you all the keys to the kingdom. You won’t be able to administer certain things – including user permissions – unless Enterprise Administrator is chosen.

nsx-icon-8

Once this is done, you’ll see the users and groups listed and should now have the correct permissions to administer the NSX deployment!

Keep in mind that if you’ve got more than one NSX manager deployed, you’ll need to set this on each independently.

Have any questions or want more information? Please feel free to leave a comment below or reach out to me on Twitter (@vswitchzero)



Check NSX 6.2.x Compatibility Before Upgrading to 6.3.5!

Unlike previous 6.3.x releases, 6.3.5 has some new upgrade minimum version compatibility requirements. This is not only true from a vSphere perspective, but also for the version of NSX 6.2.x you are running. If you are running an older 6.2.0, 6.2.1 or 6.2.2 release of NSX, you’ll need to upgrade to at least 6.2.4 before taking the big step up to 6.3.5. VMware has just updated the NSX Upgrade Matrix to reflect this requirement:

622upg635-1

Screenshot taken from the VMware Interoperability Matrix site.

I expect that VMware will update the 6.3.5 release notes and release a new KB article very shortly. I’ll provide some more detail when that is out. In the meantime, please be sure to heed the version requirements or you will most likely run into problems.

Thankfully there aren’t too many customers still running these old releases of 6.2.x, but if you have already attempted the upgrade and hit problems, you’ll need to roll back. If you took a cold-snapshot of the manager or a clone, you can roll back that way. Otherwise, you’ll need to deploy the original 6.2.x OVA again and restore your FTP backup.

** Edit 11/29/2017: VMware has just updated the NSX 6.3.5 release notes to include mention of the minimum version requirements. The following statement was added:

Important: If you are upgrading NSX 6.2.0, 6.2.1, or 6.2.2 to NSX 6.3.5, you must complete a workaround before starting the upgrade. See VMware Knowledge Base article 000051624 for details.

VMware calls it a “workaround” but it’s basically just upgrading to an interim version before going to 6.3.5. In KB 000051624, VMware recommends going to 6.2.9 as that workflow has been tested. I.e. upgrading from 6.2.0 to 6.2.9, and then to 6.3.5. On a positive note, you only need to upgrade your NSX Manager to 6.2.9, no other components need to be upgraded before proceeding on to 6.3.5.

If you attempt an upgrade from 6.2.2 or older releases, my understanding is that the upgrade will appear to be completed successfully, but your configuration will be missing. VMware calls out the remediation steps of rolling back to the previous version should you run into this issue.

NSX 6.3.4 Now Available!

On Friday October 13th, VMware released NSX for vSphere 6.3.4. You may be surprised to see another 6.3.x version only two months after the release of 6.3.3. Unlike the usual build updates, 6.3.4 is a maintenance release containing only a small number of fixes for problems identified in 6.3.3. This is very similar to the 6.2.6 maintenance release that came out shortly after 6.2.5.

As always, the relevant detail can be found in the 6.3.4 Release Notes. You can also find the 6.3.4 upgrade bundle at the VMware NSX Download Page.

In the Resolved Issues section of the release notes, VMware outlines only three separate fixes that 6.3.4 addresses.

Resolved Issues

I’ll provide a bit of additional commentary around each of the resolved issues in 6.3.4:

Fixed Issue 1970527: ARP fails to resolve for VMs when Logical Distributed Router ARP table crosses 5K limit

This first problem was actually a regression in 6.3.3. In a previous release, the ARP table limit was increased to 20K, but in 6.3.3 the limit regressed back to previous limit of 5K. To be honest, not many customers have deployments to the scale where this would be a problem. A small number of very large deployments may see issues in 6.3.3.

Fixed Issue 1961105: Hardware VTEP connection goes down upon controller reboot. A BufferOverFlow exception is seen when certain hardware VTEP configurations are pushed from the NSX Manager to the NSX Controller. This overflow issue prevents the NSX Controller from getting a complete hardware gateway configuration. Fixed in 6.3.4.

This buffer overflow issue could potentially cause datapath issues. Thankfully, not very many NSX designs include the use of Hardware VTEPs, but if yours does and you are running 6.3.3, it would be a good idea to consider upgrading to 6.3.4.

And the final, but most likely to impact customer’s is listed third in the release notes:

Fixed Issue 1955855: Controller API could fail due to cleanup of API server reference files. Upon cleanup of required files, workflows such as traceflow and central CLI will fail. If external events disrupt the persistent TCP connections between NSX Manager and controller, NSX Manager will lose the ability to make API connections to controllers, and the UI will display the controllers as disconnected. There is no datapath impact. Fixed in 6.3.4.

I discussed this issue in more detail in a recent blog post. You can also find more information on this issue in VMware KB 2151719. In a nutshell, the communication channel between NSX Manager and the NSX Control cluster can become disrupted due to files being periodically purged by a cleanup maintenance script. Usually, you wouldn’t notice until the connection needed to be re-established after a network outage or an NSX manager reboot. Thankfully, as VMware mentions, there is no datapath impact and a simple workaround exists. Despite being more of an annoyance than a serious problem, the vast majority of NSX users running 6.3.3 are likely to hit this at one time or another.

My Opinion and Upgrade Recommendations

The third issue in the release notes described in VMware KB 2151719 is likely the most disruptive to the majority of NSX users. That said, I really don’t think it’s critical enough to have to drop everything and upgrade immediately. The workaround of restarting the controller API service is relatively simple and there should be no resulting datapath impact.

The other two issues described are not likely to be encountered in the vast majority of NSX deployments, but are potentially more serious. Unless you are really pushing the scale limits or are using Hardware VTEPs, there is likely little reason to be concerned.

I certainly think that VMware did the right thing to patch these identified problems as quickly as possible. For new greenfield deployments, I think there is no question that 6.3.4 is the way to go. For those already running 6.3.3, it’s certainly not a bad idea to upgrade, but you may want to consider holding out for 6.3.5, which should include a much larger number of fixes.

On a positive note, if you do decide to upgrade, there are likely some components that will not need to be upgraded. Because there are only a small number or fixes relating to the control plane and logical switching, ESGs, DLRs and Guest Introspection will likely not have any code changes. You’ll also benefit from not having to reboot ESXi hosts for VIB patches thanks to changes in the 6.3.x upgrade process. Once I have a chance to go through the upgrade in my lab, I’ll report back on this.

Running 6.3.3 today? Let me know what your plans are!

Re-deploying NSX Controllers During Upgrades

I’ve had this question come up a lot lately and there seems to be some confusion around whether or not NSX controllers need to be redeployed after upgrading them. The short answer to this question is really “it depends”. There are actually three different scenarios where you may want or need to delete and re-deploy NSX controllers as part of the upgrade process. Today, I’ll walk through these situations and the proper process to delete and re-deploy your controller nodes.

The Normal Upgrade Process

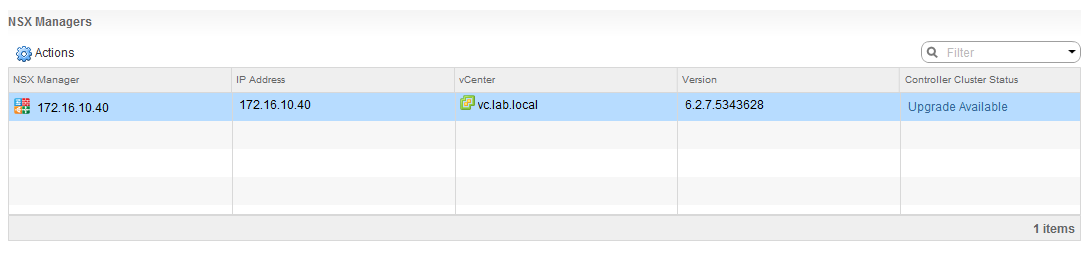

Upgrading the NSX Control Cluster is a very straight-forward process. After clicking the upgrade link, an automated process begins to upgrade the controller code, and reboot each cluster member sequentially.

controller-redeploy-3

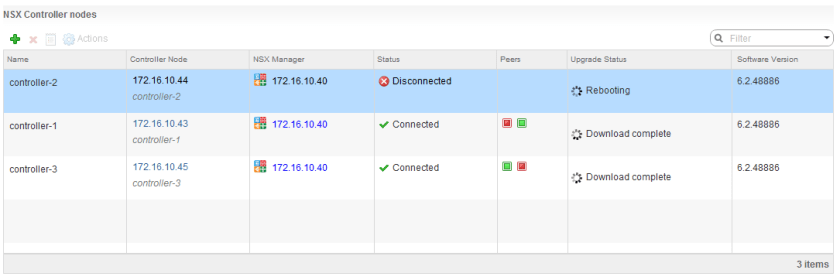

Once the ‘Upgrade Available’ link is clicked, you’ll see each of the three controllers download the upgrade bundle, upgrade and then reboot before NSX moves on to the next one.

controller-redeploy-7

Once NSX goes through its paces, it’s usually a good idea to ensure that the control-cluster join status is ‘Join complete’ and that all three controllers agree on the Cluster UUID.

nsx-controller # show control-cluster status
Type Status Since
--------------------------------------------------------------------------------
Join status: Join complete 07/24 13:38:32
Majority status: Connected to cluster majority 07/24 13:38:19
Restart status: This controller can be safely restarted 07/24 13:38:48
Cluster ID: f2849ee2-7fb6-4aca-abf4-2ca176337956
Node UUID: f2849ee2-7fb6-4aca-abf4-2ca176337956

Role Configured status Active status
--------------------------------------------------------------------------------
api_provider enabled activated
persistence_server enabled activated
switch_manager enabled activated
logical_manager enabled activated
directory_server enabled activated

Because the underling structure of the VM itself doesn’t change, this sort of in-place code upgrade and reboot is sufficient and has minimal impact.

Scenario 1 – E1000 vNIC Replacement

The first scenario where you may want to redeploy the controllers involves a virtual hardware change that was introduced in NSX 6.1.5. NSX controllers deployed in 6.1.5 use the VMXNET3 vNIC adapter, whereas older versions had legacy Intel E1000 emulated vNICs. This change wasn’t well publicized and surprisingly it isn’t even found in the NSX 6.1.5 release notes.

I’ve seen quite a few customers go through upgrade cycles from 6.0 or 6.1 all the way to more recent 6.2.x or 6.3.x releases while retaining E1000 vNICs on their controllers. Although the E1000 vNIC adapter is generally pretty stable, there is at least one documented issue where the adapter driver suffers a hang and the controller is no longer able to transmit or receive. This problem is described in VMware KB 2150747.

That said, I personally would not wait for a problem to occur and would recommend checking to ensure your controllers are using VMXNET3, and if not, go through the redeployment procedure I’ll outline later in this post. Aside from preventing the E1000 hang problem, you’ll also benefit from the other improvements VMXNET3 has to offer like better offloading and lower CPU utilization.

Unfortunately, finding out if your controllers have E1000 or VMXNET3 adapters can be a tad tricky. You’ll find that your controllers are locked down and can’t be edited in the vSphere Web Client or the legacy vSphere Client.

controller-redeploy-1

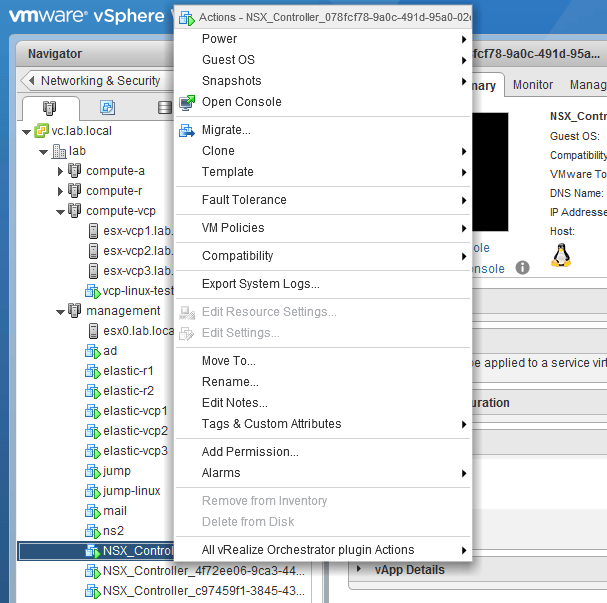

As seen above, the ‘Edit Settings’ option is greyed out.

controller-redeploy-2

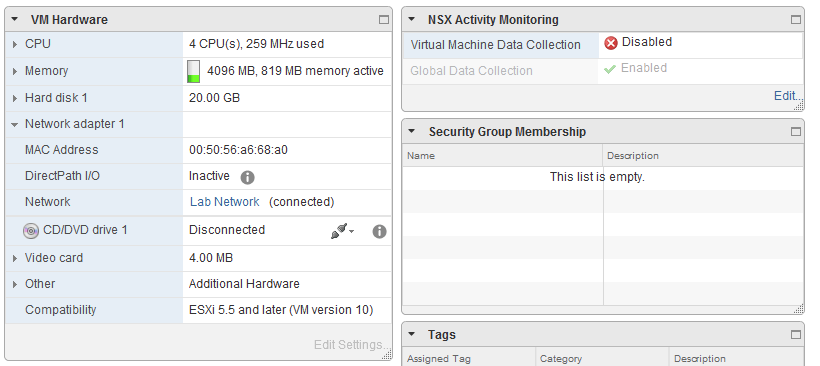

The summary page also doesn’t tell us much, so the easiest way to get the adapter type is to check from the ESXi command line.

First, let’s SSH into a host where one of the controllers live and then find the full path to the VMX file:

[root@esx0:~] cd /vmfs/volumes
[root@esx0:/vmfs/volumes] find ./ -name NSX_Controller*.vmx
./58f77a6f-30961726-ac7e-002655e1b06c/NSX_Controller_078fcf78-9a0c-491d-95a0-02e8b5175935/NSX_Controller_078fcf78-9a0c-491d-95a0-02e8b5175935.vmx

Next, I will look for the relevant vNIC adapter settings in the VMX file using the full path obtained in the previous command output:

[root@esx0:/vmfs/volumes] cat ./58f77a6f-30961726-ac7e-002655e1b06c/NSX_Controller_c97459f1-3845-436f-8e03-60ad3cbed9e4/NSX_Controller_c97459f1-3845-436f-8e03-60ad3cbed9e4.vmx |grep -i ethernet0.virtualDev
ethernet0.virtualDev = "vmxnet3"

The key setting in the VMX that we are interested in is ethernet0.virtualDev. As seen above, the type is vmxnet3 on my controllers as they were created from a freshly deployed 6.2.5 environment. If you see e1000 here, your controllers were deployed from a 6.1.4 or older setup and have never been re-deployed.

Scenario 2 – Updating the Disk Partitioning Layout

The second scenario would be if your controllers were initially deployed in a version of NSX prior to 6.2.3. Since 6.2.3 was pulled shortly after release, 6.2.4 would be more relevant starting point.

A statement you’ll find in the NSX 6.2.4 release notes summarizes this change well:

“…New installations of NSX 6.2.3 or later will deploy NSX Controller appliances with updated disk partitions to provide extra cluster resiliency. In previous releases, log overflow on the controller disk might impact controller stability. In addition to adding log management enhancements to prevent overflows, the NSX Controller appliance has separate disk partitions for data and logs to safeguard against these events. If you upgrade to NSX 6.2.3 or later, the NSX Controller appliances will retain their original disk layout.”

Again, it’s possible you may never run into a problem due to the old partitioning layout, but it’s always wise to take advantage of ‘optional’ resiliency enhancements like this. This is especially true for such a critical component of the NSX control-plane.

Although there isn’t a supported way to enter the root shell on a controller appliance, the ‘show status’ command will provide you with the partitioning layout. Here is the layout on a newer 6.2.5 controller with the newer partitioning:

nsx-controller # show status
Version: 4.0.6 (Build 48886)

Current Time: Fri, 25 Aug 2017 15:01:17 +0000
Uptime: 32 days 1 hour 23 minutes 16 seconds

Load Average: 0.10, 0.10, 0.13
Memory Usage: 3926484 kB (Total), 267752 kB (Free)
Disk Usage:
Filesystem                      1K-blocks    Used Available Use% Mounted on
/dev/sda1                         6596784 1181520   5057120  19% /
udev                              1953420       4   1953416   1% /dev
/dev/mapper/nvp-var               6593712 2349576   3886148  38% /var
/dev/mapper/nvp-var+cloudnet+data 3776568  147908   3417104   5% /var/cloudnet/data

Essentially, there are now three separate partitions for data instead of just one. Files for everything were just lumped together along with the Linux OS in a single partition previously. If some runaway log files filled the partition, key services would be impacted. By separating everything out, the key controller services like the zookeeper clustering service will still be able to write to disk.

I don’t have access to a pre-6.2.3 setup at the moment, but you can tell if your controller still uses the old partitioning layout by the absence of two partitions in the ‘show status output’. Both /dev/mapper/nvp-var and /dev/mapper/nvp-var+cloudnet+data only exist on controllers using the new partitioning layout.

Because disk partitioning is a pretty low-level, there was really no way to incorporate this into the automated upgrade process. To get the new layout, you’ll need to delete and re-deploy the controller appliances.

Scenario 3 – Upgrading to NSX 6.3.3

NSX 6.3.3 introduces a major change to the NSX controllers, replacing the underlying Linux OS with VMware’s new distribution dubbed Photon OS. The virtual hardware also changes slightly in 6.3.3 as the Photon OS based controllers require larger VMDK disks. Because this changes the entire foundation of the VM and is mandatory – unlike the vNIC and partitioning changes mentioned earlier – there is no way to perform in-place code upgrades. Each of the controllers needs to be deleted and re-deployed.

Thankfully, because of the mandatory nature of this change, VMware modified the upgrade process in 6.3.3 to automatically delete and re-deploy controllers for you.

From the NSX 6.3.3 release notes:

“In NSX 6.3.3, the underlying operating system of the NSX Controller changes. This means that when you upgrade to NSX 6.3.3, instead of an in-place software upgrade, the existing controllers are deleted one at a time, and new Photon OS based controllers are deployed using the same IP addresses.”

That said, no manual intervention is required when upgrading to 6.3.3. Controllers will be deleted and re-deployed automatically as part of the upgrade process. For more information, see the NSX public docs on the subject.

Some Warnings and Cautions

Before I go through the process of destroying and re-creating controller nodes, I really want to preface by saying that this process is potentially risky and should only be done during a maintenance window. It’s also very important that the process be done correctly to ensure you don’t run into any major problems. Below are some common pitfalls and other recommendations:

  1. Never just delete or remove the controller appliances from the vCenter inventory. NSX keeps track of the controllers in its database and doesn’t react well to having appliances yanked from under it. They must be deleted properly.
  2. Never deploy more than three controllers thinking you can just do a ‘cut over’. I.e. Don’t deploy six controllers and then delete the three old ones. A one to one replacement must be done and we never want fewer than two functional controllers in the cluster, and never more than three.
  3. If a controller fails to delete using the normal supported method, there is a reason. Don’t force the deletion without speaking to VMware technical support first. A common reason I’ve seen for this is a mismatched moref identifier for the appliance VM. If the NSX database thinks a controller is vm-73, but the actual VM is vm-75, the delete will fail. Removing controllers from the vCenter Inventory and re-adding them will cause this type of mismatch.
  4. It’s very important to validate that the control cluster health is good before proceeding to the next controller for deletion/re-deployment. Do not skip these checks and be patient with this process. Unless you have two fully functional controllers up and running in the cluster, you won’t have full control-plane functionality and a risk data-plane outage.
  5. If something goes wrong, you’ll still be okay if you have two controllers working in the cluster. Don’t just proceed in the interest of ‘moving forward’ because there is a good chance the other two will behave similarly. Contact VMware support if there is every any doubt.

A Quick Note on Force Deletion

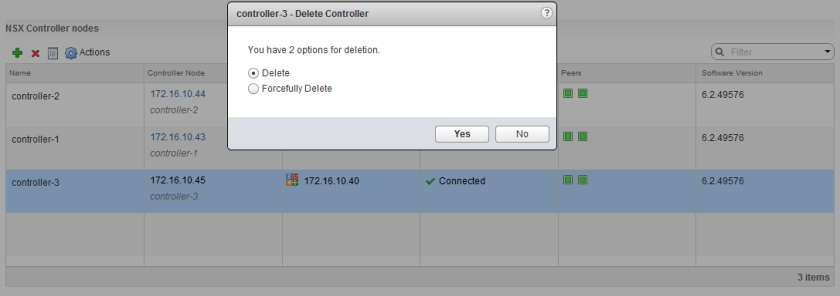

While trying to delete a controller, you’ll be greeted by a ‘Forcefully Delete’ option. When selected, this option nukes everything related to the controller from the NSX database and NSX doesn’t care whether the VM appliance is successfully removed or not. This option should never used unless advised by VMware support for repairing specific cluster problems. As mentioned in the previous section, if a regular delete fails, there is always a specific reason. Using ‘Forcefully Delete’ to work around these problems can leave remnants behind and potentially cause problems with the cluster.

The warning presented by the NSX UI when you try to Force Delete a cluster node:

“Forcefully deleting a controller may result into NSX Controller cluster going down and the rest of the controllers may get disconnected, thereby resulting in problems like no majority and data inconsistency. Many operations like adding logical components will not be possible. If you still choose to delete the controller, it is recommended to also delete the rest of the controllers and recreate them.”

It’s also worth mentioning that the only time you’d need to forcefully delete a controller in a normal workflow is when deleting the last of three controllers. NSX will only delete the very last controller using the force option. Because we’re only removing one at a time, this should not apply here.

Controller Re-deployment Process

Again, you won’t need to use this process if you are upgrading to NSX 6.3.3 or later because the deletion and re-creation of appliances is handled in an automated manner. If you’d like to take advantage of a VMXNET3 adapter and/or the new partitioning layout in newer versions of NSX, please read on.

The overall goal here is to replace the NSX control cluster members one at a time, keeping in mind that as long as two controller nodes are online and healthy, the control-plane continues to function. In theory, you shouldn’t suffer any kind of control-plane or data-plane outage using this process.

**Edit 11/15/2017: As you may be aware, there have been a few new bugs discovered, including one that impacts the deployment/re-deployment of NSX controllers in 6.3.3 and 6.3.4. Please be sure to have a look at my post on the subject as well as the VMware KB before proceeding. If you are running 6.3.3, do not delete your controllers until you’ve implemented the workaround or patched. If you still have the old 6.3.3 upgrade bundle, you may not be able to upgrade.

Step 1 – Data collection and preparation

Before proceeding, we’ll need to collect some information about our current controller deployment. In order to deploy a controller, the following information is required:

  1. The vSphere Cluster that your controllers will live in.
  2. The datastore you want to use for your controllers.
  3. The network portgroup (standard or distributed) that your controllers are in.
  4. If you used a specific naming convention for your controllers, be sure to note it down.
  5. And finally, the IP address pool that’s used for the controllers. Note that when deleting controllers using this method, an IP will be freed up from the pool so even with just three IPs in a pool, this process should work.

Be sure to get the above information from the vSphere Web Client before proceeding so that you don’t have to go looking for it during the process.

Step 2 – Validate the control-cluster health

Before you begin the process, it’s very important to ensure you have a functional control cluster with all nodes connected to the cluster majority. As tempting as it may be, do not skip this check.

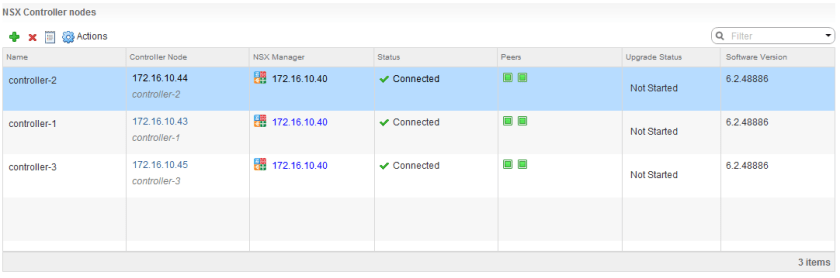

controller-redeploy-4

Checking in the UI is a good first place to look for obvious signs of trouble, but I would not rely on this method alone. If everything is green in the UI, log into each of the three controllers via SSH and run the show control-cluster status command:

nsx-controller # show control-cluster status
Type Status Since
--------------------------------------------------------------------------------
Join status: Join complete 08/25 15:26:19
Majority status: Connected to cluster majority 08/25 15:30:45
Restart status: This controller can be safely restarted 08/25 15:31:09
Cluster ID: f2849ee2-7fb6-4aca-abf4-2ca176337956
Node UUID: 309611b3-2441-4a1a-a12b-a5537e999c23

Role Configured status Active status
--------------------------------------------------------------------------------
api_provider enabled activated
persistence_server enabled activated
switch_manager enabled activated
logical_manager enabled activated
directory_server enabled activated

There are several key things you’ll want to validate before proceeding.

  1. The Join status must read ‘Join complete’. No other status is acceptable.
  2. The Majority status must read ‘Connected to cluster majority
  3. The Restart status must read ‘This controller can be safely restarted’.
  4. Each controller node must have the same ‘Cluster ID’.

If all three controllers look good, you can proceed.

Step 3 – Delete the first controller

Once we’ve confirmed the control cluster health is good, we can delete the first controller from the NSX UI. It doesn’t matter which one you do first, but in my example, I’ll start with controller-3 and work my way backwards.

To delete, simply select the ‘Management’ tab of the Installation section in the NSX UI and click the little red ‘X’ icon above.

controller-redeploy-9

As mentioned earlier, we want to use the normal ‘Delete’ option. Do NOT use ‘Forcefully Delete’.

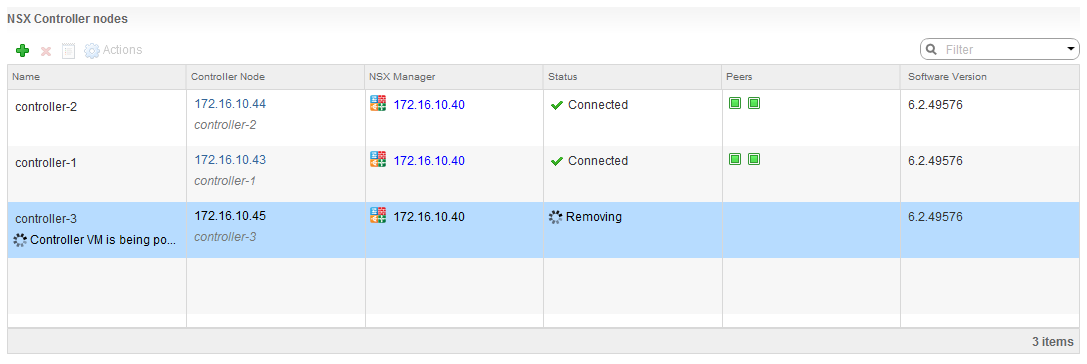

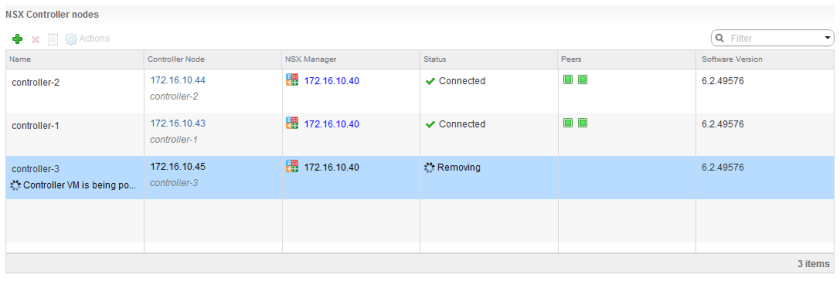

controller-redeploy-10

NSX will execute several tasks related to the controller VM. First, it will power off the VM appliance, it will then delete it and remove all references of the controller in the database. It’s not unusual for this process to take 10 minutes or longer.

Once the controller has disappeared from the NSX ‘Management’ tab, it’s very important to check that the appliance itself was actually deleted from the vCenter inventory.

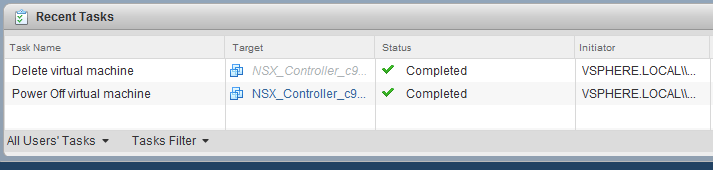

controller-redeploy-11

Check for both the successful power off and deletion tasks in the recent tasks pane and also confirm the VM is no longer present in the inventory.

Finally, we’ll want to check the cluster health from the other two surviving nodes using the same show control-cluster status command we used earlier. Ensure that both controllers look healthy.

I’d also recommend ensuring that the cluster is now only comprised of two nodes from the NSX controller node’s perspective. Just because NSX manager says there are two doesn’t necessarily guarantee the other controllers do. You can check this using the show control-cluster startup-nodes command:

nsx-controller # show control-cluster startup-nodes
172.16.10.43, 172.16.10.44

As seen above, my control cluster confirms only two members.

Step 4 – Replace the Deleted Controller.

Once the first controller has been deleted successfully and we’ve confirmed the health of the control cluster, we can go ahead and deploy a new one.

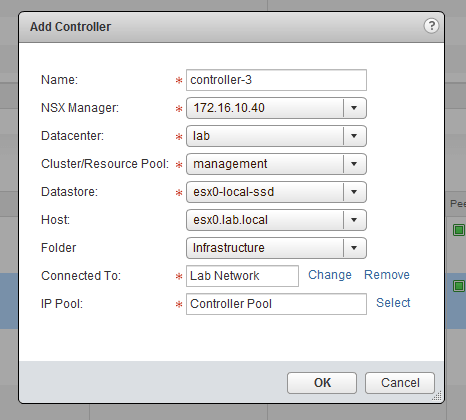

controller-redeploy-12

The process should be very straight forward and is the same as what was done during the initial deployment of NSX. Keep in mind that the name you specify is simply a label and that the moref identifier of the new controller will change.

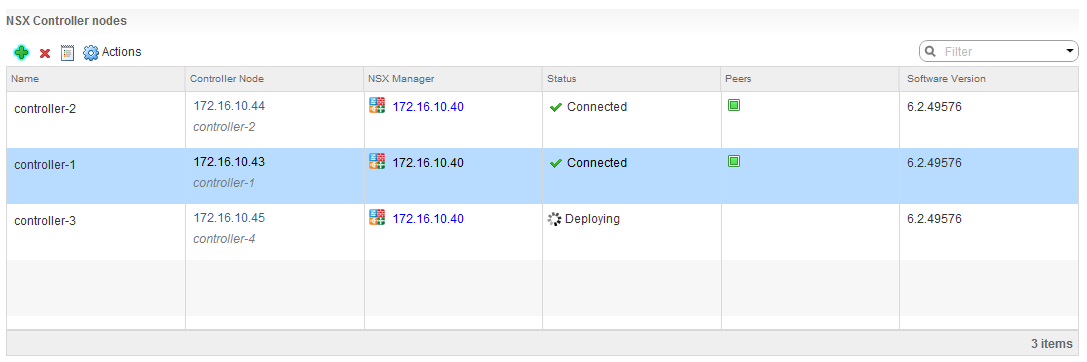

controller-redeploy-13

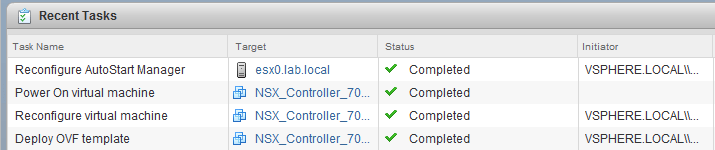

NSX will report the new controller in the ‘Deploying’ status for some time, but you can monitor the tasks and events from the vSphere Web Client:

controller-redeploy-14

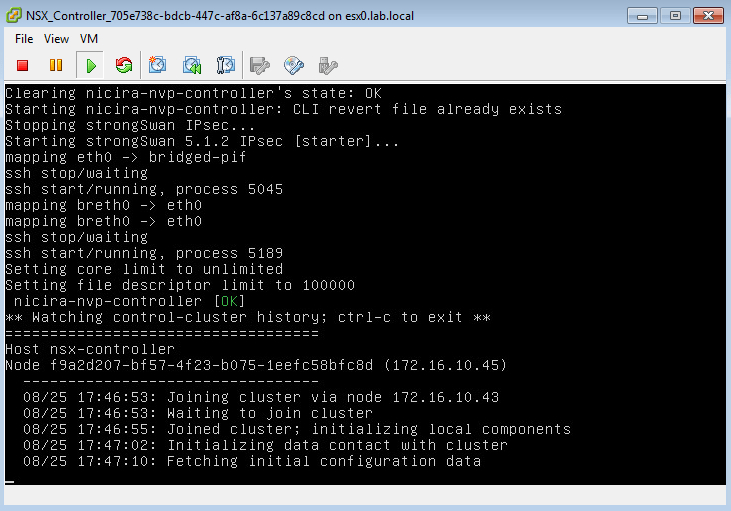

You can also watch the console of the new controller to confirm that it’s finished joining the cluster and ready for logins. It will usually be sitting a ‘Fetching initial configuration data’ for some time before it’s ready:

controller-redeploy-15

Once it’s powered up and ready, you can log-in via CLI and ensure that the ‘show control-cluster status’ output looks healthy as described earlier and that there are three startup-nodes again:

nsx-controller # show control-cluster status
Type Status Since
--------------------------------------------------------------------------------
Join status: Join complete 08/25 17:47:16
Majority status: Connected to cluster majority 08/25 17:47:13
Restart status: This controller can be safely restarted 08/25 17:47:14
Cluster ID: f2849ee2-7fb6-4aca-abf4-2ca176337956
Node UUID: f9a2d207-bf57-4f23-b075-1eefc58bfc8d

Role Configured status Active status
--------------------------------------------------------------------------------
api_provider enabled activated
persistence_server enabled activated
switch_manager enabled activated
logical_manager enabled activated
directory_server enabled activated

nsx-controller # show control-cluster startup-nodes
172.16.10.43, 172.16.10.44, 172.16.10.45

As seen above, my new controller is online and healthy. Most importantly it agrees with the other two controllers on the ID of the cluster and number of startup nodes.

You could also do a ‘show status’ on the controller to confirm that it has the new partitioning layout at this time as discussed earlier.

Step 5 – Rinse and Repeat.

It’s extremely important to verify the cluster health before proceeding with the deletion of the next cluster node. Aside from the checks in the previous section, this would also be a good time to do some basic connectivity tests. Make sure your distributed routers are functional and that your guests connected to logical switches are working normally.

If you delete the next controller while the cluster is in a bad state, there is a good chance you’ll be down to a single node and will be operating in a ‘read-only’ state. In this condition, any VTEP, ARP or MAC table changes in the environment – like those triggered by vMotions, etc – would fail to propagate. This is definitely not a situation you’d want to be in.

Once you are sure it’s safe to proceed, simply repeat steps 3 and 4 above for the remaining two controllers.

Conclusion

So there you have it. The process can be a bit of a nail-biting experience in a production environment, but if you take the appropriate precautions everything should work without a hitch. The reward for your patience will be a more resilient control cluster with virtual hardware configured as VMware intended.

Thanks for reading! If you have any questions, please feel free to post below.
