New Upgrade Issue in NSX 6.4.4

Be sure to check out VMware KB 67416 before upgrading to 6.4.4.

If you are planning to upgrade to NSX 6.4.4, be sure to have a look at VMware KB 67416 before you do. I’ve seen several customers hit this issue now, and a bit of pre-work before the upgrade can save you a lot of grief.

It appears that if you are using grouping objects, like security groups or IP sets in your ESG firewall rules, there is a chance that your ESG will become unmanageable after NSX Manager gets upgraded to 6.4.4. Most customers will notice this issue when they go to upgrade their ESGs as part of the upgrade process and the tasks fail. In addition to not being able to upgrade the edge, all configuration changes you attempt to make will also fail.

This issue lies in the message bus communication channel between NSX Manager and the ESG. These security groups and IP sets trigger a large number of messages and eventually the channel becomes blocked as a result. Unfortunately, there is no workaround aside from removing these groups and IP sets from the firewall before upgrading. This may not be a feasible workaround for the majority of customers out there.

Although not a common configuration, this issue can also be triggered if DFW rules are applied to ESGs and these rules contain grouping objects.

If you know your environment is configured with security groups and IP sets in the edge firewall, I’d recommend reaching out to VMware technical support prior to beginning your upgrade. Support can proactively install a “hot patch” so that you won’t hit this problem. If you have already hit this, the same hot patch can be applied to get you back up and running. In order for the patch to work, the ESG would have to be re-deployed leading to a brief outage. Obviously getting in front of this issue is a better plan than being reactive.

VMware will be updating the 6.4.4 release notes to reflect this.

NSX-T Troubleshooting Scenario 1 – Solution

Welcome to the first installment of a new series of NSX-T troubleshooting scenarios. Thanks to everyone who took the time to comment on the first half of the scenario. Today I’ll be performing some troubleshooting and will show how I came to the solution.

Please see the first half for more detail on the problem symptoms and some scoping.

Getting Started

As we saw in the first half, the installation of the NSX-T VIBs were failing with the following error:

nsxt-tshoot1a-5

At first glance, it looked as if the NSX-T VIBs, or an older version of them were already installed. Taking a closer look at the actual VIB names, however, was very telling. The ‘esx-nsxv’ in the name denotes that these belong to NSX for vSphere.

Logging in to host esx-a3 via SSH and checking for installed VIBs with ‘nsx’ in the name came back with the following:

[root@esx-a3:~] esxcli software vib list |grep nsx
esx-nsxv                       6.5.0-0.0.8590012                     VMware      VMwareCertified   2018-08-31

Indeed, the NSX-V VIBs are still installed. Having a look at the environment, we saw that all other traces of NSX-V were gone – the manager, controllers, vmkernel ports, portgroups and Web Client plugin were missing. Only these lingering VIBs were not removed from these three hosts for some reason. It’s important to properly remove NSX to prevent issues like this from occurring.

Removing the NSX-V VIBs

The first order of business was to put the host in maintenance mode. I didn’t have any running VMs created yet, so I just went ahead and put all three in maintenance mode:

nsxt-tshoot1b-2

Once that was done, I could remove the VIBs using the following esxcli software vib command:

Continue reading “NSX-T Troubleshooting Scenario 1 – Solution”

NSX-T Troubleshooting Scenario 1

Welcome to the first NSX-T troubleshooting scenario! My NSX-V troubleshooting scenarios have been well received, so I thought it was time to start a new series for NSX-T. If you’ve got an idea for a scenario, please let me know!

What I hope to do in these posts is share some of the common issues I run across from day to day. Each scenario will be a two-part post. The first will be an outline of the symptoms and problem statement along with bits of information from the environment. The second will be the solution, including the troubleshooting and investigation I did to get there.

The Scenario

As always, we’ll start with a brief problem statement:

“I removed NSX for vSphere from my lab environment and am trying to install NSX-T for a proof of concept. Unfortunately, I get an error message every time I try to install the NSX-T VIBs on my ESXi hosts! I’m running NSX-T 2.3.1, and ESXi 6.5 U2”

In the NSX-T UI, we’re greeted with a simple “NSX Install Failed” message for the host esx-a3:

nsxt-tshoot1a

Clicking on this error gives us a much more verbose error message:

nsxt-tshoot1a-5

The full text of the error message is as follows:

NSX components not installed successfully on compute-manager discovered node. Failed to install software on host. Failed to install software on host. esx-a3.vswitchzero.net : java.rmi.RemoteException: [DependencyError] File path of '/bin/net-vdl2' is claimed by multiple non-overlay VIBs: {'VMware_bootbank_esx-nsxv_6.5.0-0.0.8590012', 'VMware_bootbank_nsx-esx-datapath_2.3.1.0.0-6.5.11294337'} File path of '/bin/vsip_vm_list.sh' is claimed by multiple non-overlay VIBs: {'VMware_bootbank_esx-nsxv_6.5.0-0.0.8590012', 'VMware_bootbank_nsx-esx-datapath_2.3.1.0.0-6.5.11294337'} File path of '/etc/vmware/firewall/netCPRuleset.xml' is claimed by multiple non-overlay VIBs: {'VMware_bootbank_nsx-netcpa_2.3.1.0.0-6.5.11294485', 'VMware_bootbank_esx-nsxv_6.5.0-0.0.8590012'} File path of '/bin/vsipioctl' is claimed by multiple non-overlay VIBs: {'VMware_bootbank_esx-nsxv_6.5.0-0.0.8590012', 'VMware_bootbank_nsx-esx-datapath_2.3.1.0.0-6.5.11294337'} File path of '/usr/lib/vmware/vm-support/bin/dump-vdr-info.sh' is claimed by multiple non-overlay VIBs: {'VMware_bootbank_esx-nsxv_6.5.0-0.0.8590012', 'VMware_bootbank_nsx-esx-datapath_2.3.1.0.0-6.5.11294337'} File path of '/bin/net-vdr' is claimed by multiple non-overlay VIBs: {'VMware_bootbank_esx-nsxv_6.5.0-0.0.8590012', 'VMware_bootbank_nsx-esx-datapath_2.3.1.0.0-6.5.11294337'} File path of '/etc/vmsyslog.conf.d/dfwpktlogs.conf' is claimed by multiple non-overlay VIBs: {'VMware_bootbank_nsx-netcpa_2.3.1.0.0-6.5.11294485', 'VMware_bootbank_esx-nsxv_6.5.0-0.0.8590012'} File path of '/etc/init.d/netcpad' is claimed by multiple non-overlay VIBs: {'VMware_bootbank_nsx-netcpa_2.3.1.0.0-6.5.11294485', 'VMware_bootbank_esx-nsxv_6.5.0-0.0.8590012'} File path of '/usr/lib/vmware/netcpa/bin/netcpa' is claimed by multiple non-overlay VIBs: {'VMware_bootbank_nsx-netcpa_2.3.1.0.0-6.5.11294485', 'VMware_bootbank_esx-nsxv_6.5.0-0.0.8590012'} File path of '/bin/dfwpktlogs.sh' is claimed by multiple non-overlay VIBs: {'VMware_bootbank_nsx-netcpa_2.3.1.0.0-6.5.11294485', 'VMware_bootbank_esx-nsxv_6.5.0-0.0.8590012'} File path of '/etc/vmware/firewall/bfdRuleset.xml' is claimed by multiple non-overlay VIBs: {'VMware_bootbank_nsx-netcpa_2.3.1.0.0-6.5.11294485', 'VMware_bootbank_esx-nsxv_6.5.0-0.0.8590012'} File path of '/etc/vmware/vm-support/dfw.mfx' is claimed by multiple non-overlay VIBs: {'VMware_bootbank_esx-nsxv_6.5.0-0.0.8590012', 'VMware_bootbank_nsx-esx-datapath_2.3.1.0.0-6.5.11294337'} Please refer to the log file for more details.

Clicking on the RESOLVE button simply tries the install again, which fails.

Continue reading “NSX-T Troubleshooting Scenario 1”

Manual Installation of NSX-T Kernel Modules in ESXi

Last week, I discussed the manual deployment of NSX-T controller nodes. Today, I’ll take a look at adding standalone ESXi hosts.

Although people usually associate manual deployment with KVM hypervisors, there is no reason you can’t do the same with ESXi hosts. Obviously, automating this process with vCenter Server as a compute manager has its advantages, but one of the empowering features of NSX-T is that is has no dependency on vCenter Server whatsoever.

Obtaining the ESXi VIBs

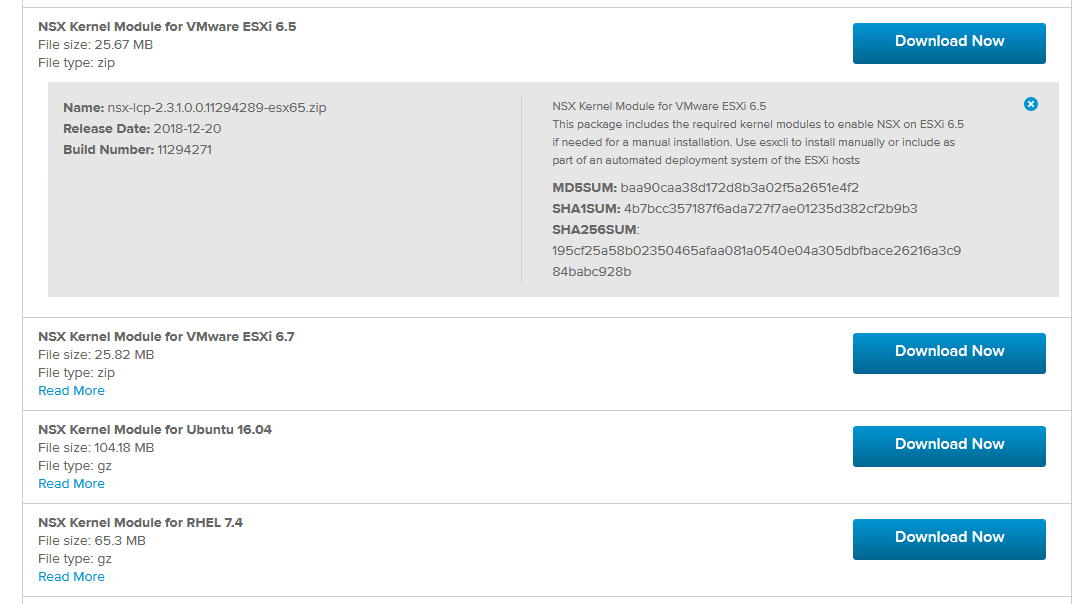

First, we’ll need to download the ESXi host VIBs. In my case, the hosts are running ESXi 6.5 U2, so I downloaded the correct 6.5 VIBs from the NSX-T download site.

nsxt-manualvib-1

Once I had obtained the ZIP file, I used WinSCP to copy it to the /tmp location on my ESXi host. The file is only a few megabytes in size so it can go just about anywhere. If you’ve got a lot of hosts to do, putting it in a shared datastore makes sense.

Installing the ESXi VIBs

Because the NSX-T kernel module is comprised of a number of VIBs, we need to install it as an ‘offline depot’ as opposed to individual VIB files. That said, there is no need to extract the ZIP file. To install it, I used the esxcli software vib install command as shown below:

[root@esx-a3:/tmp] esxcli software vib install --depot=/tmp/nsx-lcp-2.3.1.0.0.11294289-esx65.zip
Installation Result
   Message: Operation finished successfully.
   Reboot Required: false
   VIBs Installed: VMware_bootbank_epsec-mux_6.5.0esx65-9272189, VMware_bootbank_nsx-aggservice_2.3.1.0.0-6.5.11294539, VMware_bootbank_nsx-cli-libs_2.3.1.0.0-6.5.11294490, VMware_bootbank_nsx-common-libs_2.3.1.0.0-6.5.11294490, VMware_bootbank_nsx-da_2.3.1.0.0-6.5.11294539, VMware_bootbank_nsx-esx-datapath_2.3.1.0.0-6.5.11294337, VMware_bootbank_nsx-exporter_2.3.1.0.0-6.5.11294539, VMware_bootbank_nsx-host_2.3.1.0.0-6.5.11294289, VMware_bootbank_nsx-metrics-libs_2.3.1.0.0-6.5.11294490, VMware_bootbank_nsx-mpa_2.3.1.0.0-6.5.11294539, VMware_bootbank_nsx-nestdb-libs_2.3.1.0.0-6.5.11294490, VMware_bootbank_nsx-nestdb_2.3.1.0.0-6.5.11294421, VMware_bootbank_nsx-netcpa_2.3.1.0.0-6.5.11294485, VMware_bootbank_nsx-opsagent_2.3.1.0.0-6.5.11294539, VMware_bootbank_nsx-platform-client_2.3.1.0.0-6.5.11294539, VMware_bootbank_nsx-profiling-libs_2.3.1.0.0-6.5.11294490, VMware_bootbank_nsx-proxy_2.3.1.0.0-6.5.11294520, VMware_bootbank_nsx-python-gevent_1.1.0-9273114, VMware_bootbank_nsx-python-greenlet_0.4.9-9272996, VMware_bootbank_nsx-python-logging_2.3.1.0.0-6.5.11294409, VMware_bootbank_nsx-python-protobuf_2.6.1-9273048, VMware_bootbank_nsx-rpc-libs_2.3.1.0.0-6.5.11294490, VMware_bootbank_nsx-sfhc_2.3.1.0.0-6.5.11294539, VMware_bootbank_nsx-shared-libs_2.3.0.0.0-6.5.10474844, VMware_bootbank_nsxcli_2.3.1.0.0-6.5.11294343
   VIBs Removed:
   VIBs Skipped:

Remember, your host will need to be in maintenance mode for the installation to succeed. Once finished, a total of 24 new VIBs were installed as shown:

[root@esx-a3:/tmp] esxcli software vib list |grep -i nsx
nsx-aggservice                 2.3.1.0.0-6.5.11294539                VMware      VMwareCertified   2019-02-15
nsx-cli-libs                   2.3.1.0.0-6.5.11294490                VMware      VMwareCertified   2019-02-15
nsx-common-libs                2.3.1.0.0-6.5.11294490                VMware      VMwareCertified   2019-02-15
nsx-da                         2.3.1.0.0-6.5.11294539                VMware      VMwareCertified   2019-02-15
nsx-esx-datapath               2.3.1.0.0-6.5.11294337                VMware      VMwareCertified   2019-02-15
nsx-exporter                   2.3.1.0.0-6.5.11294539                VMware      VMwareCertified   2019-02-15
nsx-host                       2.3.1.0.0-6.5.11294289                VMware      VMwareCertified   2019-02-15
nsx-metrics-libs               2.3.1.0.0-6.5.11294490                VMware      VMwareCertified   2019-02-15
nsx-mpa                        2.3.1.0.0-6.5.11294539                VMware      VMwareCertified   2019-02-15
nsx-nestdb-libs                2.3.1.0.0-6.5.11294490                VMware      VMwareCertified   2019-02-15
nsx-nestdb                     2.3.1.0.0-6.5.11294421                VMware      VMwareCertified   2019-02-15
nsx-netcpa                     2.3.1.0.0-6.5.11294485                VMware      VMwareCertified   2019-02-15
nsx-opsagent                   2.3.1.0.0-6.5.11294539                VMware      VMwareCertified   2019-02-15
nsx-platform-client            2.3.1.0.0-6.5.11294539                VMware      VMwareCertified   2019-02-15
nsx-profiling-libs             2.3.1.0.0-6.5.11294490                VMware      VMwareCertified   2019-02-15
nsx-proxy                      2.3.1.0.0-6.5.11294520                VMware      VMwareCertified   2019-02-15
nsx-python-gevent              1.1.0-9273114                         VMware      VMwareCertified   2019-02-15
nsx-python-greenlet            0.4.9-9272996                         VMware      VMwareCertified   2019-02-15
nsx-python-logging             2.3.1.0.0-6.5.11294409                VMware      VMwareCertified   2019-02-15
nsx-python-protobuf            2.6.1-9273048                         VMware      VMwareCertified   2019-02-15
nsx-rpc-libs                   2.3.1.0.0-6.5.11294490                VMware      VMwareCertified   2019-02-15
nsx-sfhc                       2.3.1.0.0-6.5.11294539                VMware      VMwareCertified   2019-02-15
nsx-shared-libs                2.3.0.0.0-6.5.10474844                VMware      VMwareCertified   2019-02-15
nsxcli                         2.3.1.0.0-6.5.11294343                VMware      VMwareCertified   2019-02-15

You can find information on the purpose of some of these VIBs in the NSX-T documentation.

Connecting the ESXi Host to the Management Plane

Now that we have the required software installed, we need to connect the ESXi host to NSX Manager. To begin, we’ll need to get the certificate thumbprint from the NSX Manager:

nsxmanager> get certificate api thumbprint
ccdbda93573cd1dbec386b620db52d5275c4a76a5120087a174d00d4508c1493

Next, we need to drop into the nsxcli shell from the ESXi CLI prompt, and then run the join management-plane command as shown below:

[root@esx-a3] # nsxcli
esx-a3> join management-plane 172.16.1.40 username admin thumbprint ccdbda93573cd1dbec386b620db52d5275c4a76a5120087a174d00d4508c1493
Password for API user: ********
Node successfully registered as Fabric Node: 0b08c694-3155-11e9-8a6c-0f1235732823

If all went well, we should now see our NSX Manager listed as connected:

esx-a3> get managers
- 172.16.1.40      Connected

From the root prompt of the ESXi host, we can see that there are now established TCP connections to the NSX Manager appliance on the RabbitMQ port 5671.

[root@esx-a3:/tmp] esxcli network ip connection list |grep 5671
tcp         0       0  172.16.1.23:55477   172.16.1.40:5671    ESTABLISHED     84232  newreno  mpa
tcp         0       0  172.16.1.23:36956   172.16.1.40:5671    ESTABLISHED     84232  newreno  mpa

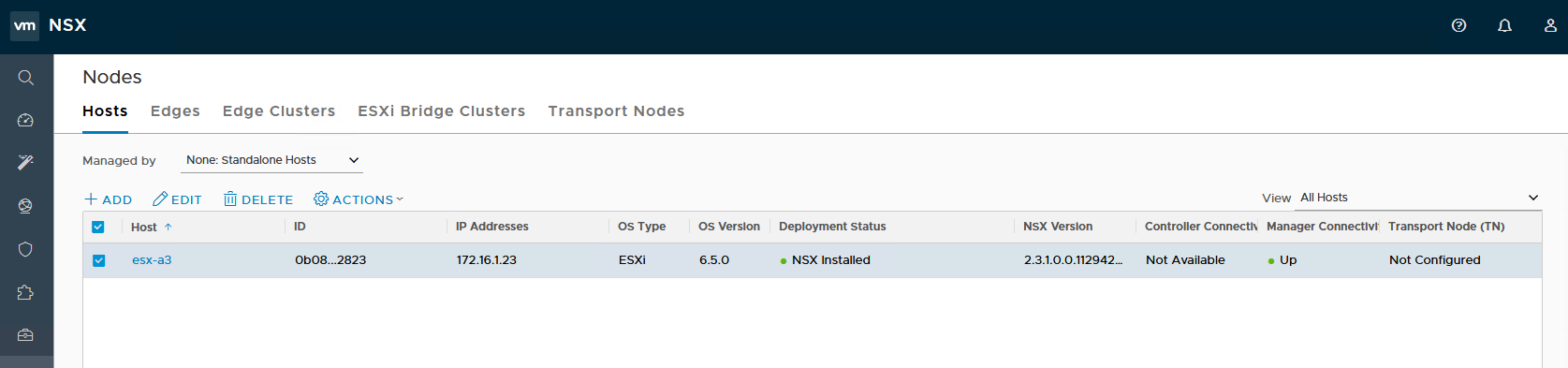

From the NSX UI, we can now see the host appear as connected under ‘Standalone Hosts’:

nsxt-manualvib-3

As a next step, you’ll want to add this new host as a transport node and you should be good to go.

It’s great to have the flexibility to do this completely without the assistance of vCenter Server. Anyone who has had to deal with the quirks of VC integration and ESX Agent Manager (EAM) in NSX-V will certainly appreciate this.



NSX-T PCPU Requirements for Edges

New CPU requirements for NSX-T may leave older lab hardware out in the cold.

If you are running old hardware in your lab, you may have come across an unexpected failure while deploying your first NSX-T edge VM.

nsxt-aes-edge-1

The exact error message will be something similar to:

“[Fabric] Edge <uuid> is not ready for configuration error occurred, error detail is NSX Edge configuration has failed. The host does not support required cpu features: [‘aes’].”

The edge will be successfully deployed, but will remain ‘unconfigured’ and will not allow you to add it as a transport node.

The ‘aes’ feature being referred to is Intel’s AES-NI acceleration for cryptography. You can find out more about AES-NI here. In NSX-V, AES-NI was optionally supported for offloading cryptography for VPN related features. It seems that this has now become a hard requirement for NSX-T.

Unfortunately, like vSphere 6.7, NSX-T has minimum CPU requirements that can’t be worked around. If you have a browse through the NSX-T system requirements, you’ll find a note about CPU compatibility in the “NSX Edge VM and Bare-Metal NSX Edge CPU Requirements” section. Listed there is reference to:

  • Xeon 56xx (Westmere-EP)
  • Xeon E7-xxxx (Westmere-EX and later CPU generation)
  • Xeon E5-xxxx (Sandy Bridge and later CPU generation)

This means that anything released prior to 2011 is unlikely to work, with the exception of a few Westermere EP based Xeons, which seem to have spotty success. On the AMD front, it appears that even CPUs with AES instructions will fail similarly due to a CPU compatibility check that is done during edge deployment.

My management host uses Xeon E5-2670s, which work fine, but my compute cluster uses very old Xeon X3440s that came out before AES-NI was introduced. Now that I can’t run vSphere 6.7 or an NSX-T edge on these hosts, I think it may finally be time to upgrade.

Unfortunately, it doesn’t appear that there is a workaround for this problem. If anyone does come across a way to avoid this, please let me know!

Deploying NSX-T Controllers Manually

Deploying an NSX-T control cluster manually for maximum control and flexibility.

One of the great things about NSX-T is its complete independence from vCenter Server. You can still link to vCenter Server if you’d like to automate certain tasks, but unlike NSX-V, you can accomplish many deployment tasks manually. One of the firsts things you’ll be doing in a new NSX-T setup is to deploy your control cluster.

Although automated deployment through vCenter and the UI is convenient, there are some additional benefits to manual controller deployment. Firstly, you can select a non-production ‘small’ sized form factor that isn’t selectable in the UI saving you a couple of vCPUs and about 8GB of RAM per appliance. Secondly, deploying manually also allows you to thin-provision your controller VMDKs off the bat. In a home lab, these are some desirable benefits. And of course, there is always the satisfaction you get from running through the process manually and better understanding what happens behind the scenes.

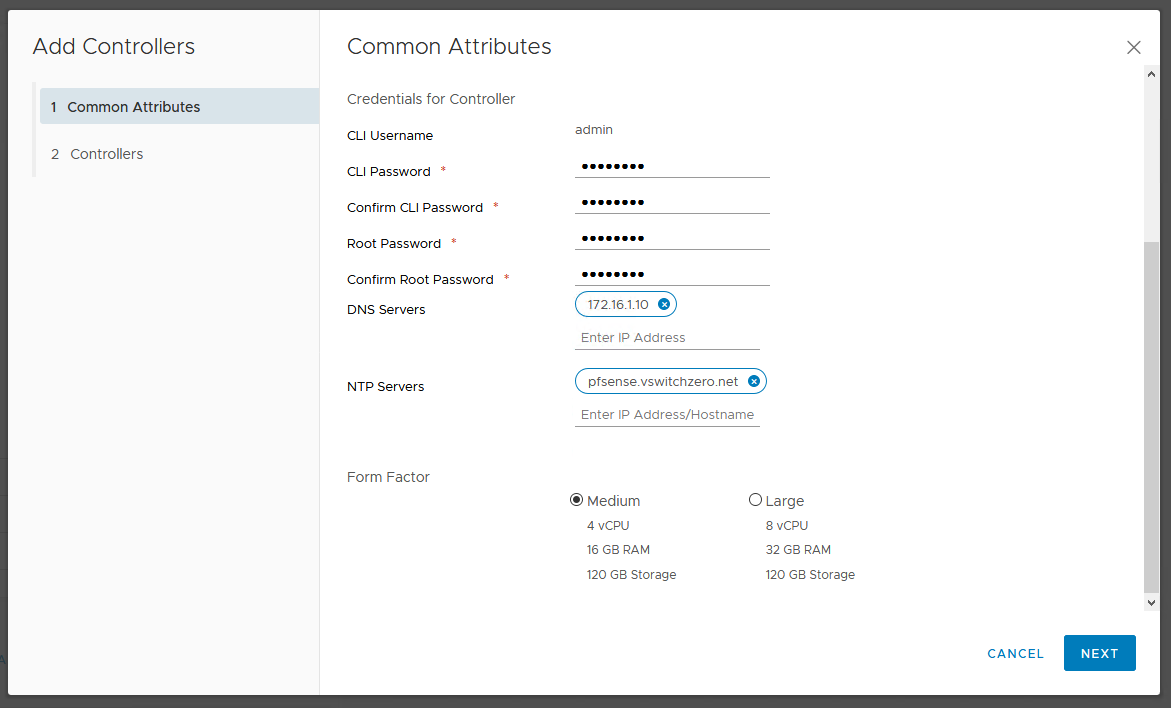

NSXT-controllerdeploy-2

As seen above, the automated controller deployment wizard does not allow the selection of a ‘Small’ form factor.

Deploying Controllers

To begin, you’ll need to download the NSX-T controller OVA. You’ll find it listed along with the other NSX-T deliverables on the download page.

NSXT-controllerdeploy-1

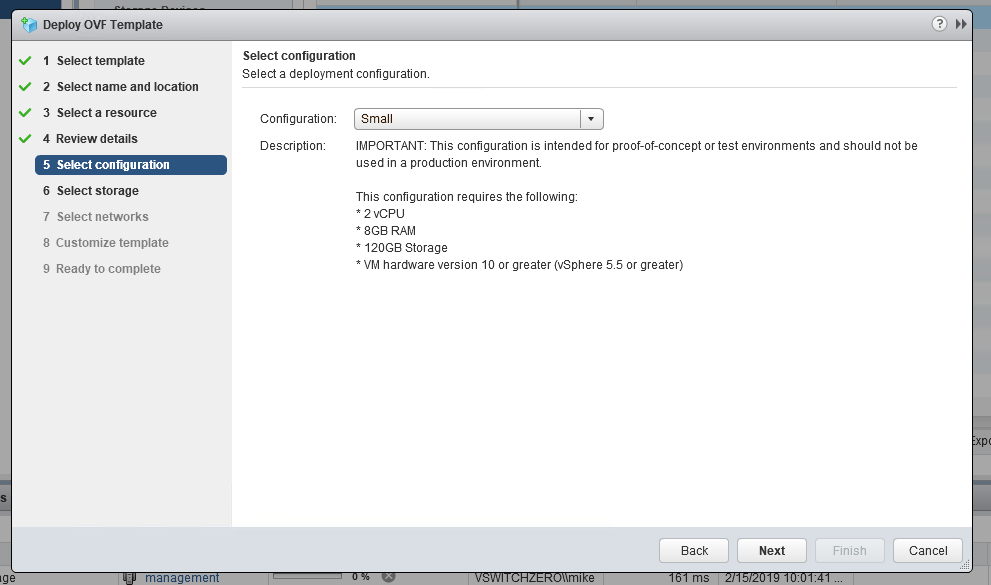

There are a few different ways that you can deploy the OVA including with ovftool. I’m just going to use the vSphere Client for this example. As you can see below, we can now select an unsupported ‘Small’ form-factor deployment:

NSXT-controllerdeploy-3

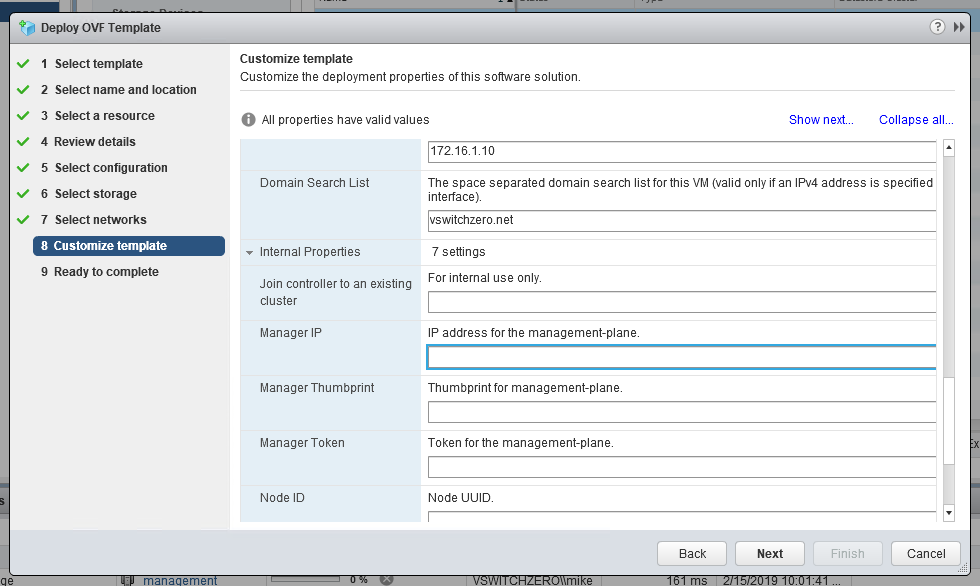

In addition to this, you’ll get the usual template customization options along with a few new ones you may not have seen listed under ‘Internal Properties’:

NSXT-controllerdeploy-4

As you probably have guessed these internal properties can be used to save some of the work needed to get it connected to the management plane and to the control cluster. I’m going to skip this entire section and run through the process manually from the CLI post-deployment.

Continue reading “Deploying NSX-T Controllers Manually”

Changing ESG/DLR Tenant After Deployment

Using NSX REST API calls to modify ESG/DLR configuration that isn’t exposed in the UI.

If you are reading this post, you’ve probably already come to the realization that the ‘Tenant’ field for ESGs can’t be changed in the UI. Once the appliance is deployed, this string value appears set in stone.

changetenant-1
Adding the Tenant and Description are easy during deployment, but can’t be changed in the UI after deployment.

Although it can’t be modified in the UI without creating a new appliance from scratch, it’s pretty easy to modify this field via REST API calls. After having come across a question on the VMware communities forum regarding this, I thought I’d write a quick post on the process.

Step 1: Retrieve the ESG/DLR Configuration

First, you’ll need to do a GET call to retrieve the current ESG/DLR configuration in XML format. I won’t cover the basics of REST API calls in this post as the topic is well covered elsewhere. If you’ve never done REST API calls before, I’d recommend doing some reading on the subject before proceeding.

I’ll be using the popular Postman utility for this. First, we’ll need to find the moref identifier of the ESG/DLR in question.

changetenant-2
We’re interested in mercury-esg1, which is edge-4 in my lab environment.

You can easily find this from the ‘Edges’ view in the UI. In my case, I want to modify the edge called mercury-esg1, which is edge-4. Notice that someone put the string ‘test’ in as the tenant, which we want to change to ‘mercury’.
From Postman, we’ll run the following API call to retrieve edge-4’s configuration:

GET https://<nsxmgrip>/api/4.0/edges/edge-4

I got a 200 OK response, with all the config in XML format returned.

changetenant-3
All of the ESG’s configuration was returned in XML format. This is everything needed to recreate or modify the appliance.

Step 2: Make the Necessary Changes

Next, I’ll copy and paste all the returned XML data into a text editor. The XML section for the tenant string is right near the top:

<edge>
    <id>edge-4</id>
    <version>32</version>
    <status>deployed</status>
    <datacenterMoid>datacenter-2</datacenterMoid>
    <datacenterName>Toronto</datacenterName>
    <tenant>test</tenant>
...

I will simply change <tenant>test</tenant> to <tenant>mercury</tenant>.

Step 3: Apply the Modified Configuration

The final step is to take your modified XML configuration data and apply it back to the ESG/DLR in question. This is as simple as changing your REST API call from GET to PUT and pasting the modified configuration into the ‘Body’ of the call.

changetenant-4
Be sure to double check your configuration before sending the PUT call!

If your call was successful, you should get a 204 No Content response.

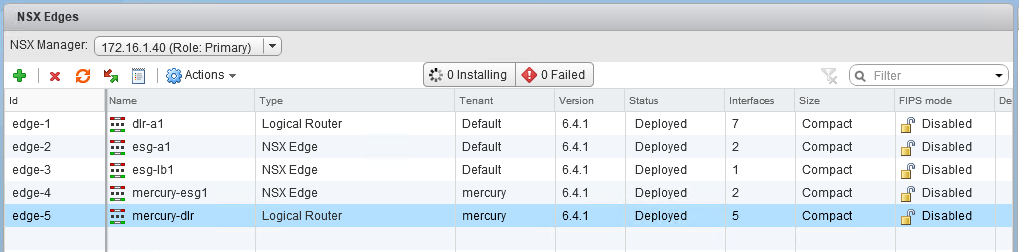

changetenant-5

And there you have it – the tenant field has been updated. Unfortunately, I haven’t had any success updating the description field via API. The <description> tag appears to be ignored in this PUT call for some reason. If anyone has any success with this, please let me know.

PowerNSX Alternative

If you prefer using PowerNSX to API calls, the Set-NsxEdge cmdlet can also work. The cmdlet uses the same API calls behind the scene, but can be quicker to execute:

PS C:\Users\mike.VSWITCHZERO> $edge = get-nsxedge mercury-esg1
PS C:\Users\mike.VSWITCHZERO> $edge.tenant = "hello"
PS C:\Users\mike.VSWITCHZERO> set-nsxedge $edge

Edge Services Gateway update will modify existing Edge configuration.
Proceed with Update of Edge Services Gateway mercury-esg1?
[Y] Yes [N] No [?] Help (default is "N"): y


id : edge-4
version : 37
status : deployed
datacenterMoid : datacenter-2
datacenterName : Toronto
tenant : hello
name : mercury-esg1
fqdn : mercury-esg1.mercury.local
enableAesni : true
enableFips : false
vseLogLevel : info
vnics : vnics
appliances : appliances
cliSettings : cliSettings
features : features
autoConfiguration : autoConfiguration
type : gatewayServices
isUniversal : false
hypervisorAssist : false
tunnels :
edgeSummary : edgeSummary

Understanding NSX IP Discovery

An in-depth look at the NSX DFW’s IP discovery methods including Tools and ARP/DHCP snooping.

One of the best features of the DFW is the flexibility it provides in using objects in rules instead of IP addresses or groups of IP addresses. For example, for a source/destination you could use a VM in the inventory, a cluster or a security group containing all sorts of dynamic criteria. Underneath all of this, however, NSX needs to be able to inspect segment and packet headers to enforce the rules. These headers are only going to contain identifying information like IP addresses and TCP ports so it must keep track of which object is associated with which IP address or addresses. And because of the ‘distributed’ nature of the DFW, each of these translations must ultimately reach the ESXi hosts for enforcement.

There are three ways in which NSX can associate IPs with VMs – VMware Tools reporting, ARP snooping and DHCP snooping. The latter two are disabled by default.

ipdiscovery-1

In recent builds of NSX, you can see the detection types enabled in the host preparation section. As can be seen above, DHCP and ARP snooping are disabled by default leaving only VMware Tools address reporting.

VMware Tools Reporting

As you have probably noticed, VMs with VMware Tools installed conveniently report their configured IP addresses in the vSphere Client.

tshoot12a-4

Virtual machine linux-a2 is reporting 172.16.15.10 as well as an IPv6 address on the summary tab in the vSphere Client. This information comes from VMware Tools and will be recorded in the NSX Manager database. Whenever we use a rule that references the VM linux-a2, NSX will look up this IP address for rule enforcement. These rules could contain a parent object, like the cluster compute-a, or a security group, a logical switch – anything that linux-a2 belongs to.

Continue reading “Understanding NSX IP Discovery”

Understanding NSX DFW Generation Numbers

A useful tool for troubleshooting DFW publication failures.

If you’ve ever been on a support call for DFW publication or rule troubleshooting, you may have heard reference to a ‘firewall generation number’ at one time or another. Whenever a change is made to the firewall rules, the NSX management plane (NSX Manager) will push these changes to all ESXi hosts, where the rules will be enforced. Because of the distributed nature of this firewalling system, it’s very important that all ESXi hosts have the latest version of the ruleset.

The NSX UI does a good job of reporting on host publication failures, but its not always clear exactly what version of the rules a problematic host is enforcing.

This is where firewall generation numbers can come in handy. The ‘generation number’ represents the point in time a publish operation occurs. Although it may look like a seemingly random thirteen-digit number, it’s actually a Unix epoch timestamp (in milliseconds) that can be converted to an actual date/time. For example, an epoch timestamp of 1548677100000 equates to Monday, January 28th, 2019 at 12:05:00 UTC. There are several online tools available to help you convert these values, including this one.

An Example

Let’s have a look at the current generation number reported on a pair of ESXi hosts. One host, esx-a2 has been reporting publication failures.

To determine the generation number, you could in theory take the last reported publication date from the UI and convert it into a Unix epoch number. In my experience, there isn’t enough accuracy and you may not get an exact match. The better way to do it is to look for a “Sending rules to Cluster” log messages in the NSX manager vsm.log file. This can be done via SSH session, or more easily using a filter in vRealize Log Insight.

[root@nsxmanager /home/secureall/secureall/logs]# cat vsm.log |grep "Sending rules to Cluster"
<snip>
2018-11-29 01:47:55.317 GMT+00:00 INFO TaskFrameworkExecutor-9 ConfigurationPublisher:110 - - [nsxv@6876 comp="nsx-manager" subcomp="manager"] Sending rules to Cluster domain-c41, Generation Number: null Object Generation Number 1543456074899.
2018-11-29 01:47:57.422 GMT+00:00 INFO TaskFrameworkExecutor-16 ConfigurationPublisher:110 - - [nsxv@6876 comp="nsx-manager" subcomp="manager"] Sending rules to Cluster domain-c41, Generation Number: 1543337228980 Object Generation Number 1543456074899.

Continue reading “Understanding NSX DFW Generation Numbers”

Testing NSX VTEP Communication

An in-depth look at the VXLAN network stack and VTEP to VTEP communication testing.

Virtual Extensible LAN – or VXLAN – is the key overlay technology that makes a lot of what NSX does possible. It abstracts the underlying L2/L3 network and allows logical switches to span vast networks and datacenters. To achieve this, each ESXi hypervisor has one or more VTEP vmkernel ports bound the the host’s VXLAN network stack instance.

Your VTEPs are created during VXLAN preparation – normally after preparing your hosts with the NSX VIBs. Doing this in the UI is a straight forward process, but there are some important pre-requisites that must be fulfilled before VXLAN networking will work. Most important of these are:

  1. Your physical networking must be configured for an end-to-end MTU of 1600 bytes. In theory it’s 1550, but VMware usually recommends a minimum of 1600.
  2. You must ensure L2 and L3 connectivity between all VTEPs.
  3. You need to prepare for IP address assignment by either configuring DHCP scopes or IP pools.
  4. If your replication mode is hybrid, you’ll need to ensure IGMP snooping is configured on each VLAN used by VTEPs.
  5. Using full Multicast mode? You’ll need IGMP snooping in addition to PIM multicast routing.

This can sometimes be easier said than done – especially if you have hosts in multiple locations with numerous hops to traverse.

Testing VXLAN VTEP communication is a key troubleshooting skill that every NSX engineer should have in their toolbox. Without healthy VTEP communication and a properly configured underlay network, all bets are off.

I know this is a pretty well covered topic, but I wanted to dive into this a little bit deeper and provide more background around why we test the way we do, and how to draw conclusions from the results.

The VXLAN Network Stack

Multiple network stacks were first introduced in vSphere 6.0 for use with vMotion and other services. There are several benefits to isolating services based on network stacks, but the most practical is a completely independent routing table. This means you can have a different default gateway for vMotion – or in this case VXLAN traffic – than you would for all other management services.

Each vmkernel port that is created on an ESXi host must belong to one and only one network stack. When your cluster is VXLAN prepared, the created kernel ports are automatically assigned to the correct ‘vxlan’ network stack.

Using the esxcfg-vmknic -l command will list all kernel ports including their assigned network stack:

[root@esx-a1:~] esxcfg-vmknic -l
Interface  Port Group/DVPort/Opaque Network        IP Family IP Address                              Netmask         Broadcast       MAC Address       MTU     TSO MSS NetStack
vmk0       7                                       IPv4      172.16.1.21                             255.255.255.0   172.16.1.255    00:25:90:0b:1e:12 1500    65535   defaultTcpipStack
vmk1       13                                      IPv4      172.16.98.21                            255.255.255.0   172.16.98.255   00:50:56:65:59:a8 9000    65535   defaultTcpipStack
vmk2       22                                      IPv4      172.16.11.21                            255.255.255.0   172.16.11.255   00:50:56:63:d9:72 1500    65535   defaultTcpipStack
vmk4       vmservice-vmknic-pg                     IPv4      169.254.1.1                             255.255.255.0   169.254.1.255   00:50:56:61:7a:23 1500    65535   defaultTcpipStack
vmk3       52                                      IPv4      172.16.76.22                            255.255.255.0   172.16.76.255   00:50:56:6b:e4:94 1600    65535   vxlan

Notice that all kernel ports belong to the ‘defaultTcpipStack’ except for vmk3, which lists vxlan. You can view the netstacks currently enabled on your host using the esxcli network ip netstack list command:

[root@esx-a1:~] esxcli network ip netstack list
defaultTcpipStack
   Key: defaultTcpipStack
   Name: defaultTcpipStack
   State: 4660

vxlan
   Key: vxlan
   Name: vxlan
   State: 4660

Continue reading “Testing NSX VTEP Communication”
