Testing NSX VTEP Communication

An in-depth look at the VXLAN network stack and VTEP to VTEP communication testing.

Virtual Extensible LAN – or VXLAN – is the key overlay technology that makes a lot of what NSX does possible. It abstracts the underlying L2/L3 network and allows logical switches to span vast networks and datacenters. To achieve this, each ESXi hypervisor has one or more VTEP vmkernel ports bound the the host’s VXLAN network stack instance.

Your VTEPs are created during VXLAN preparation – normally after preparing your hosts with the NSX VIBs. Doing this in the UI is a straight forward process, but there are some important pre-requisites that must be fulfilled before VXLAN networking will work. Most important of these are:

Your physical networking must be configured for an end-to-end MTU of 1600 bytes. In theory it’s 1550, but VMware usually recommends a minimum of 1600.
You must ensure L2 and L3 connectivity between all VTEPs.
You need to prepare for IP address assignment by either configuring DHCP scopes or IP pools.
If your replication mode is hybrid, you’ll need to ensure IGMP snooping is configured on each VLAN used by VTEPs.
Using full Multicast mode? You’ll need IGMP snooping in addition to PIM multicast routing.

This can sometimes be easier said than done – especially if you have hosts in multiple locations with numerous hops to traverse.

Testing VXLAN VTEP communication is a key troubleshooting skill that every NSX engineer should have in their toolbox. Without healthy VTEP communication and a properly configured underlay network, all bets are off.

I know this is a pretty well covered topic, but I wanted to dive into this a little bit deeper and provide more background around why we test the way we do, and how to draw conclusions from the results.

The VXLAN Network Stack

Multiple network stacks were first introduced in vSphere 6.0 for use with vMotion and other services. There are several benefits to isolating services based on network stacks, but the most practical is a completely independent routing table. This means you can have a different default gateway for vMotion – or in this case VXLAN traffic – than you would for all other management services.

Each vmkernel port that is created on an ESXi host must belong to one and only one network stack. When your cluster is VXLAN prepared, the created kernel ports are automatically assigned to the correct ‘vxlan’ network stack.

Using the esxcfg-vmknic -l command will list all kernel ports including their assigned network stack:

[root@esx-a1:~] esxcfg-vmknic -l
Interface  Port Group/DVPort/Opaque Network        IP Family IP Address                              Netmask         Broadcast       MAC Address       MTU     TSO MSS NetStack
vmk0       7                                       IPv4      172.16.1.21                             255.255.255.0   172.16.1.255    00:25:90:0b:1e:12 1500    65535   defaultTcpipStack
vmk1       13                                      IPv4      172.16.98.21                            255.255.255.0   172.16.98.255   00:50:56:65:59:a8 9000    65535   defaultTcpipStack
vmk2       22                                      IPv4      172.16.11.21                            255.255.255.0   172.16.11.255   00:50:56:63:d9:72 1500    65535   defaultTcpipStack
vmk4       vmservice-vmknic-pg                     IPv4      169.254.1.1                             255.255.255.0   169.254.1.255   00:50:56:61:7a:23 1500    65535   defaultTcpipStack
vmk3       52                                      IPv4      172.16.76.22                            255.255.255.0   172.16.76.255   00:50:56:6b:e4:94 1600    65535   vxlan

Notice that all kernel ports belong to the ‘defaultTcpipStack’ except for vmk3, which lists vxlan. You can view the netstacks currently enabled on your host using the esxcli network ip netstack list command:

[root@esx-a1:~] esxcli network ip netstack list
defaultTcpipStack
   Key: defaultTcpipStack
   Name: defaultTcpipStack
   State: 4660

vxlan
   Key: vxlan
   Name: vxlan
   State: 4660

Continue reading “Testing NSX VTEP Communication”

Jumbo Frames and VXLAN Performance

Using an 8900 MTU for better VXLAN throughput and lower packet rates.

VXLAN overlay technology is part of what makes software defined networking possible. By encapsulating full frames into UDP datagrams, L2 networks can be stretched across all manners of routed topologies. This breaks down the barriers of physical networking and builds the foundation for the software defined datacenter.

VXLAN or Virtual Extensible LAN is an IETF standard documented in RFC 7348. L2 over routed topologies is made possible by encapsulating entire L2 frames into UDP datagrams. About 50 bytes of outer header data is added to every L2 frame because of this, meaning that for every frame sent on a VXLAN network, both an encapsulation and de-encapsulation task must be performed. This is usually performed by ESXi hosts in software but can sometimes be offloaded to physical network adapters as well.

In a perfect world, this would be done without any performance impact whatsoever. The reality, however, is that software defined wizardry often does have a small performance penalty associated with it. This is unavoidable, but that doesn’t mean there isn’t anything that can be done to help to minimize this cost.

If you’ve been doing some performance testing, you’ve probably noticed that VMware doesn’t post statements like “You can expect X number of Gbps on a VXLAN network”. This is because there are simply too many variables to consider. Everything from NIC type, switches, drivers, firmware, offloading features, CPU count and frequency can play a role here. All these factors must be considered. From my personal experience, I can say that there is a range – albeit a somewhat wide one – of what I’d consider normal. On a modern 10Gbps system, you can generally expect more than 4Gbps but less than 7Gbps with a 1500 MTU. If your NIC supports VXLAN offloading, this can sometimes be higher than 8Gbps. I don’t think I’ve ever seen a system achieve line-rate throughput on a VXLAN backed network with a 1500 MTU regardless of the offloading features employed.

What if we can reduce the amount of encapsulation and de-encapsulation that is so taxing on our hypervisors? Today I’m going to take an in-depth look at just this – using an 8900 MTU to reduce packet rates and increase throughput. The results may surprise you!

Continue reading “Jumbo Frames and VXLAN Performance”

NSX Transport Zone Cluster Removal Issues

Ever remove a cluster from your NSX transport zone only to see it reappear on the list of clusters available for disconnection? Unfortunately, the task likely failed but NSX doesn’t always do a very good job of telling you why in the UI.

I was recently attempting to remove a cluster called compute-b from my transport zone so that I could remove and rebuild the hosts within. Needless to say, I ran into some difficulties and wanted to share my experience.

If you are interested in some more detailed instructions on how to decommission NSX prepared hosts, you can check out my post on Completely Removing NSX. From a high level, the steps I wanted to do were the following:

Disconnect all VMs from logical switches in the cluster to be removed.
Remove the cluster from the transport zone. This will remove all port groups associated with the logical switches (assuming no other clusters are connected to the same distributed switch)
‘Unconfigure’ VXLAN from the ‘Logical Network Preparation’ tab to remove all VTEPs.
Uninstall the NSX VIBs from the Host Preparation Tab.

To begin, I used the ‘Remove VM’ button from the Logical Switches view in NSX. I removed all four of the VMs attached to the only Logical Switch being used at the moment. I saw a bunch of VM reconfigure tasks complete, and assumed it had completed successfully.

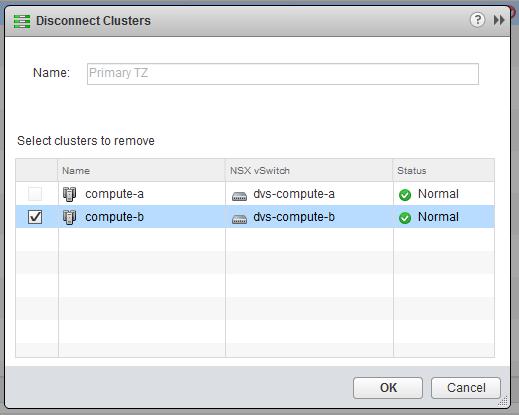

I then went to disconnect compute-b from the transport zone called Primary TZ. After removing the cluster and clicking OK, the dialog closed giving the impression that the task was successful. Oddly though, I didn’t see the tasks related to port group removal that I expected to see.

tzremove-1

Sure enough, I went back into the ‘Disconnect Clusters’ dialog and saw the compute-b cluster still in the list. Unfortunately, NSX doesn’t appear to report failures for this particular workflow in the UI.

Having worked in support for many years, I followed my first instinct and checked the NSX Manager vsm.log file for detail on why the operation failed. I received the below failure details:

2017-11-24 18:50:13.016 GMT+00:00 INFO taskScheduler-8 JobWorker:243 - Updating the status for jobinstance-101742 to EXECUTING
2017-11-24 18:50:13.022 GMT+00:00 INFO taskScheduler-8 SchedulerQueueServiceImpl:64 - [TF] Created a new bucket for module default_module and total number of buckets 1
2017-11-24 18:50:13.022 GMT+00:00 INFO taskScheduler-8 SchedulerQueueServiceImpl:80 - The task ShrinkVdnScope-vdnscope-1 (1511549412299) [id:task-102755] is added to the SchedulerQueue
2017-11-24 18:50:13.022 GMT+00:00 INFO pool-10-thread-1 ScheduleSynchronizer:48 - Start executing task: task-102755 and running executor threads 1
2017-11-24 18:50:13.042 GMT+00:00 INFO TaskFrameworkExecutor-3 VdnScopeServiceImpl$2:995 - New VDS (count: 1) is being removed when shrinking scope vdnscope-1. Shrinkingwires.
2017-11-24 18:50:13.061 GMT+00:00 ERROR TaskFrameworkExecutor-3 VirtualWireServiceImpl:1577 - validation failed at delete backing for dvportgroup-815 in the scope: vdnscope-1
2017-11-24 18:50:13.061 GMT+00:00 ERROR TaskFrameworkExecutor-3 VdnScopeServiceImpl$2:1015 - Shrink operation failed on TZ vdnscope-1
2017-11-24 18:50:13.061 GMT+00:00 ERROR TaskFrameworkExecutor-3 Worker:219 - BaseException thrown while executing task instance taskinstance-166334
com.vmware.vshield.vsm.vdn.exceptions.XvsException: core-services:819:Transport zone vdnscope-1 contraction error.
 at com.vmware.vshield.vsm.vdn.service.VirtualWireServiceImpl.validateShrink(VirtualWireServiceImpl.java:1578)
 at com.vmware.vshield.vsm.vdn.service.VdnScopeServiceImpl$2.doTask(VdnScopeServiceImpl.java:1001)
 at com.vmware.vshield.vsm.vdn.service.task.AbstractVdnRunnableTask.run(AbstractVdnRunnableTask.java:80)
 at com.vmware.vshield.vsm.task.service.Worker.runtask(Worker.java:184)
 at com.vmware.vshield.vsm.task.service.Worker.executeAsync(Worker.java:122)
 at com.vmware.vshield.vsm.task.service.Worker.run(Worker.java:99)
 at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1145)
 at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:615)
 at java.lang.Thread.run(Thread.java:745)
2017-11-24 18:50:13.068 GMT+00:00 INFO TaskFrameworkExecutor-3 JobWorker:243 - Updating the status for jobinstance-101742 to FAILED

There is quite a bit there, but the key takeaways are that the task clearly failed and that the reason was: “validation failed at delete backing for dvportgroup-815 in the scope: vdnscope-1”

This doesn’t tell us why exactly, but it seems clear that the operation can’t delete dvportgroup-815 and fails. In my experience, 99% of the time this is because there is still something connected to the portgroup.

Since there were only four VMs in the cluster, and no ESGs or DLRs – I wasn’t sure what could possibly be connected. I even shut down all four disconnected VMs and put all three hosts in maintenance mode just to be sure. None of these actions helped.

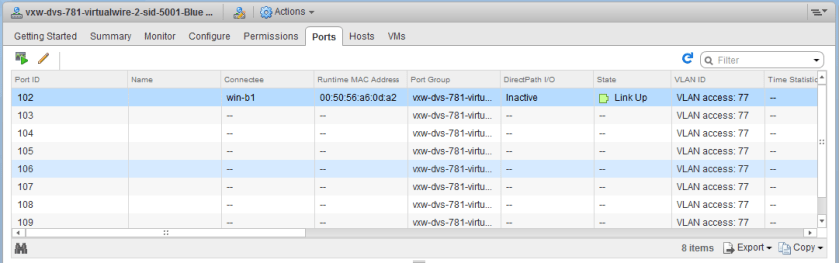

I then navigated to the Networking view in vCenter to have a look at the DVS associated with the compute-b cluster. In the ‘Ports’ view, you can get a good idea of what exactly is still connected to the distributed switch. To my surprise a VM called win-b1 was actually still showing as ‘Active’ and ‘Connected’ to the dvPortgroup associated with a Logical Switch!

This dvPort state is clearly wrong – first of all, the VM was powered off so it could not be ‘Link Up’. Secondly I thought I had removed the VM. Or did I?

tzremove-4

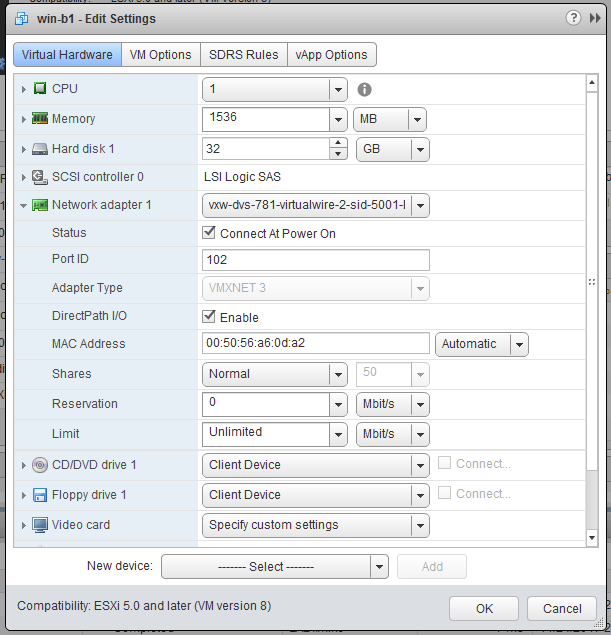

Although I didn’t see any failures, it doesn’t appear that this VM was removed from the Logical Switch. Maybe I missed it, or perhaps it was a quirk due to the bug outlined in KB 2145889 where DirectPath I/O is enabled on VMs created with the vSphere Web Client. This was the only VM that had this option checked off, but despite my best efforts I could not reproduce the problem. Regardless, knowing what the problem was, I could simply disconnect the NIC and add it to another temporary portgroup.

This adjustment appeared to refresh the DVS port state and then I was able to remove the cluster from the Transport Zone successfully.

When in doubt, don’t hesitate to dig into the NSX Manager logging. If the UI doesn’t tell you why something didn’t work or is light on details, the logging can often set you in the right direction!
