Testing NSX VTEP Communication

An in-depth look at the VXLAN network stack and VTEP to VTEP communication testing.

Virtual Extensible LAN – or VXLAN – is the key overlay technology that makes a lot of what NSX does possible. It abstracts the underlying L2/L3 network and allows logical switches to span vast networks and datacenters. To achieve this, each ESXi hypervisor has one or more VTEP vmkernel ports bound the the host’s VXLAN network stack instance.

Your VTEPs are created during VXLAN preparation – normally after preparing your hosts with the NSX VIBs. Doing this in the UI is a straight forward process, but there are some important pre-requisites that must be fulfilled before VXLAN networking will work. Most important of these are:

  1. Your physical networking must be configured for an end-to-end MTU of 1600 bytes. In theory it’s 1550, but VMware usually recommends a minimum of 1600.
  2. You must ensure L2 and L3 connectivity between all VTEPs.
  3. You need to prepare for IP address assignment by either configuring DHCP scopes or IP pools.
  4. If your replication mode is hybrid, you’ll need to ensure IGMP snooping is configured on each VLAN used by VTEPs.
  5. Using full Multicast mode? You’ll need IGMP snooping in addition to PIM multicast routing.

This can sometimes be easier said than done – especially if you have hosts in multiple locations with numerous hops to traverse.

Testing VXLAN VTEP communication is a key troubleshooting skill that every NSX engineer should have in their toolbox. Without healthy VTEP communication and a properly configured underlay network, all bets are off.

I know this is a pretty well covered topic, but I wanted to dive into this a little bit deeper and provide more background around why we test the way we do, and how to draw conclusions from the results.

The VXLAN Network Stack

Multiple network stacks were first introduced in vSphere 6.0 for use with vMotion and other services. There are several benefits to isolating services based on network stacks, but the most practical is a completely independent routing table. This means you can have a different default gateway for vMotion – or in this case VXLAN traffic – than you would for all other management services.

Each vmkernel port that is created on an ESXi host must belong to one and only one network stack. When your cluster is VXLAN prepared, the created kernel ports are automatically assigned to the correct ‘vxlan’ network stack.

Using the esxcfg-vmknic -l command will list all kernel ports including their assigned network stack:

[root@esx-a1:~] esxcfg-vmknic -l
Interface  Port Group/DVPort/Opaque Network        IP Family IP Address                              Netmask         Broadcast       MAC Address       MTU     TSO MSS NetStack
vmk0       7                                       IPv4      172.16.1.21                             255.255.255.0   172.16.1.255    00:25:90:0b:1e:12 1500    65535   defaultTcpipStack
vmk1       13                                      IPv4      172.16.98.21                            255.255.255.0   172.16.98.255   00:50:56:65:59:a8 9000    65535   defaultTcpipStack
vmk2       22                                      IPv4      172.16.11.21                            255.255.255.0   172.16.11.255   00:50:56:63:d9:72 1500    65535   defaultTcpipStack
vmk4       vmservice-vmknic-pg                     IPv4      169.254.1.1                             255.255.255.0   169.254.1.255   00:50:56:61:7a:23 1500    65535   defaultTcpipStack
vmk3       52                                      IPv4      172.16.76.22                            255.255.255.0   172.16.76.255   00:50:56:6b:e4:94 1600    65535   vxlan

Notice that all kernel ports belong to the ‘defaultTcpipStack’ except for vmk3, which lists vxlan. You can view the netstacks currently enabled on your host using the esxcli network ip netstack list command:

[root@esx-a1:~] esxcli network ip netstack list
defaultTcpipStack
   Key: defaultTcpipStack
   Name: defaultTcpipStack
   State: 4660

vxlan
   Key: vxlan
   Name: vxlan
   State: 4660

Continue reading “Testing NSX VTEP Communication”

NSX Troubleshooting Scenario 14 – Solution

Welcome to the fourteenth installment of a new series of NSX troubleshooting scenarios. Thanks to everyone who took the time to comment on the first half of the scenario. Today I’ll be performing some troubleshooting and will show how I came to the solution.

Please see the first half for more detail on the problem symptoms and some scoping.

Getting Started

In the first half, our fictional customer was trying to prevent a specific summary route from being advertised to a DLR appliance using a BGP filter. Every time they added the filter, all connectivity to VMs downstream from that DLR was lost.

tshoot14a-4

The filter appears correct. The summary route is a /21 network that comprises all eight /24s that were assigned to logical switches. You can also see that GE and LE (greater than/less than) values were not specified, so the specific summary route should be matched exactly.

tshoot14a-5

After publishing the changes, we saw that all BGP routes were removed from the DLR. It’s almost as if the filter stopped ALL route prefixes from making it to the DLR rather than just the one specified. Wait, did it?

Let’s refer to the NSX documentation on BGP filters. Under the Configure BGP section, the relevant steps are the following:

Continue reading “NSX Troubleshooting Scenario 14 – Solution”

NSX Troubleshooting Scenario 14

Welcome to the fourteenth installment of my NSX troubleshooting series. What I hope to do in these posts is share some of the common issues I run across from day to day. Each scenario will be a two-part post. The first will be an outline of the symptoms and problem statement along with bits of information from the environment. The second will be the solution, including the troubleshooting and investigation I did to get there.

The Scenario

As always, we’ll start with a brief problem statement:

“I’m trying to prevent some specific BGP routes from being advertised to my DLR, but the route filters aren’t working properly. Every time I try to do this, I get an outage to everything behind the DLR!”

Let’s have a quick look at what this fictional customer is trying to do with BGP.

tshoot14a-0

The design is simple – a single ESG peered with a single DLR appliance. The /21 address space assigned to this environment has been split out into eight /24 networks.

tshoot14a-3

The mercury-esg1 appliance has two neighbors configured – the physical router (172.18.0.1) and the southbound DLR protocol address (172.18.8.4). Both the ESG and DLR are in the same AS (iBGP).

tshoot14a-1

As you can see, on mercury-esg1 a summary static route has been created with the DLR forwarding address as the next hop. This /21 summarizes all eight /24 subnets that will be assigned to the logical switches in this environment. Because the customer wants more specific /24 BGP routes to be advertised by the DLR, this is what is referred to as a floating static route. Because it’s less specific, it’ll only take effect as a backup should BGP peering go down. This is a common design consideration and provides a bit of extra insurance should the DLR appliance go down unexpectedly.

Continue reading “NSX Troubleshooting Scenario 14”

NSX Troubleshooting Scenario 13 – Solution

Welcome to the thirteenth installment of a new series of NSX troubleshooting scenarios. Thanks to everyone who took the time to comment on the first half of the scenario. Today I’ll be performing some troubleshooting and will show how I came to the solution.

Please see the first half for more detail on the problem symptoms and some scoping.

Getting Started

As you’ll recall in the first half, our fictional customer was having issues re-deploying ESGs and DLRs that had been removed from the vCenter inventory. This was all part of a cleanup activity that occurred due to a SAN outage.

tshoot13a-5
Not a very informative error message. We’ll need to refer to the logging to find out more.

To begin, we’ll really need more information on exactly why NSX is failing to re-deploy these ESGs and DLRs. The message in the UI is not very informative. As mentioned, there are no failed tasks in the vCenter recent tasks pane when an attempt is made, so we’ll need to go digging into the logging to find out more.

Taking a look at the vsm.log file on the NSX Manager appliance, we can see a backtrace occur at the same time as the deployment attempt:

2018-12-06 23:43:17.681 GMT+00:00 ERROR TaskFrameworkExecutor-19 Worker:219 - - [nsxv@6876 comp="nsx-manager" subcomp="manager"] BaseException thrown while executing task instance taskinstance-100656 com.vmware.vshield.edge.exception.EdgeVmDeploymentFailedException: nested exception is com.vmware.vshield.vsm.inventory.vcoperations.OvfManagerInternalErrorException:
core-services:1100:OVF Manager internal error. For more details, refer to the rootCauseString or the VC logs:
Managed object id datastore-26 of type Datastore was not found in VC.

The key part of the message that is of interest is the following:

“Managed object id datastore-26 of type Datastore was not found in VC.”

Continue reading “NSX Troubleshooting Scenario 13 – Solution”

NSX Troubleshooting Scenario 13

Welcome to the thirteenth installment of my NSX troubleshooting series. What I hope to do in these posts is share some of the common issues I run across from day to day. Each scenario will be a two-part post. The first will be an outline of the symptoms and problem statement along with bits of information from the environment. The second will be the solution, including the troubleshooting and investigation I did to get there.

The Scenario

As always, we’ll start with a brief problem statement:

“After recovering from a storage outage, we’re unable to re-deploy any of our missing DLRs and ESGs. Help!”

With this type of a problem description, the first order of business is to find out EXACTLY what happened. After a lengthy discussion with the fictional customer, we were able to piece together the following sequence of events:

  1. The SAN suffered a catastrophic failure.
  2. All of the LUNs were continuously replicated to another SAN over the years, so these replicated LUNs were presented to the hosts in the compute-a cluster.
  3. After a rescan, the VMFS volumes were re-signatured and the datastores and all files were again accessible.
  4. All of the VMs on those datastores were manually added back to the vCenter Inventory except the DLRs and ESGs.
  5. All DLRs and ESGs were deleted from the datastore so that they could be freshly re-deployed.

The customer did realize that in point number 5 above that any ESGs re-added to the inventory would no longer be valid because of mismatched UUIDs. Deleting these from disk and re-deploying was a good idea.

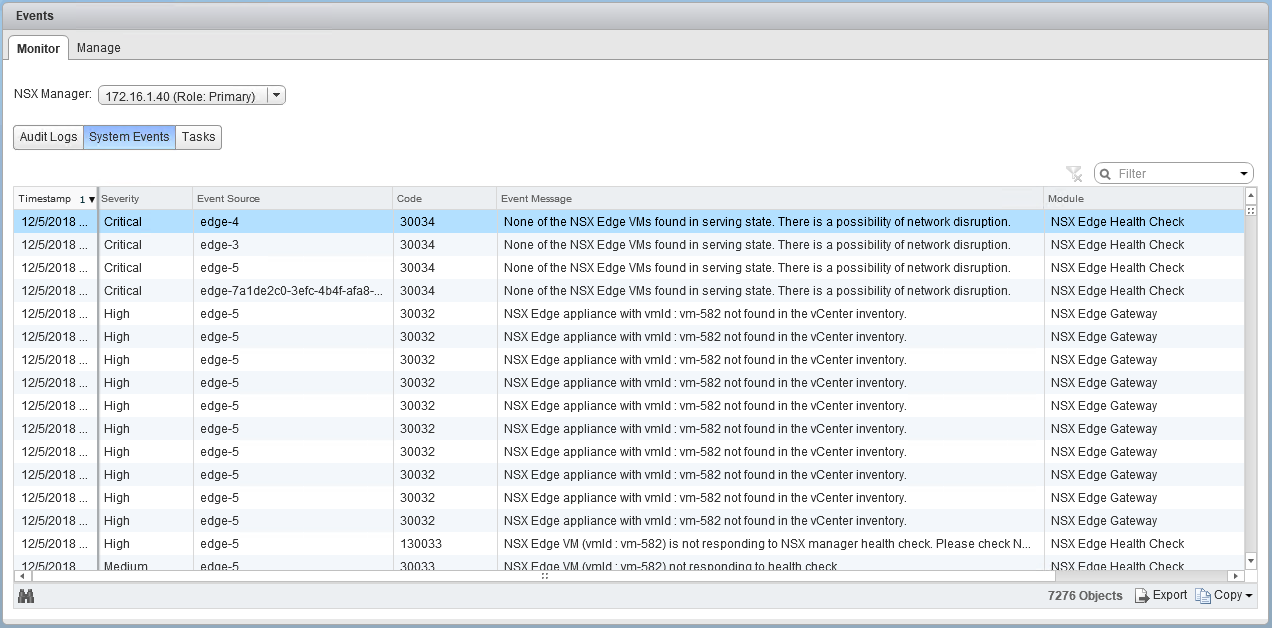

NSX is throwing many high and critical events because of the missing ESG and DLR appliances, as expected.

tshoot13a-1

There are six appliances in total, including three DLRs and three ESGs.

Continue reading “NSX Troubleshooting Scenario 13”

NSX Troubleshooting Scenario 12 – Solution

Welcome to the twelfth installment of a new series of NSX troubleshooting scenarios. Thanks to everyone who took the time to comment on the first half of the scenario. Today I’ll be performing some troubleshooting and will show how I came to the solution.

Please see the first half for more detail on the problem symptoms and some scoping.

Getting Started

As you’ll recall in the first half, our fictional customer was getting some unexpected behavior from a couple of firewall rules. Despite the rules being properly constructed, one VM called linux-a3 continued to be accessible via SSH.

tshoot12a-2
The two rules in question – 1007 and 1008 – look to be constructed correctly.

We confirmed that the IP addresses for the machines in the security group where translated correctly by NSX and that the ruleset didn’t appear to be the problem. Let’s recap what we know:

  1. VM linux-a2 seems to be working correctly and SSH traffic is blocked.
  2. VM linux-a3 doesn’t seem to respect rule 1007 for some reason and remains accessible via SSH from everywhere.
  3. Host esx-a3 where linux-a3 resides doesn’t appear to log any activity for rule 1007 or 1008 even though those rules are configured to log.
  4. The two VMs are on different ESXi hosts (esx-a1 and esx-a3).
  5. VMs linux-a2 and linux-a3 are in different dvPortgroups.

Given these statements, there are several things I’d want to check:

  1. How can the two VMs have proper IP connectivity in VXLAN and VLAN porgroups as observed?
  2. Is the DFW working at all on host esx-a3?
  3. Did the last rule publication make it to host esx-a3 and does it match what we see in the UI?
  4. Is the DFW (slot-2) dvfilter applied to linux-a3 correctly?

Continue reading “NSX Troubleshooting Scenario 12 – Solution”

NSX Troubleshooting Scenario 12

Welcome to the twelfth installment of my NSX troubleshooting series. What I hope to do in these posts is share some of the common issues I run across from day to day. Each scenario will be a two-part post. The first will be an outline of the symptoms and problem statement along with bits of information from the environment. The second will be the solution, including the troubleshooting and investigation I did to get there.

For this scenario today, I’ve created some supplementary video content to go along this post:

The Scenario

As always, we’ll start with a brief problem statement:

“I am just getting started with the NSX distributed firewall and see that the rules are not behaving as they should be. I have two VMs, linux-a2 and linux-a3 that should allow SSH from only one specific jump box. The linux-a3 VM can be accessed via SSH from anywhere! Why is this happening?”

To get started with this scenario, we’ll most certainly need to look at how the DFW rules are constructed to get the desired behavior. The immense flexibility of the distributed firewall allows for dozens of different ways to achieve what is described.

Here are the two VMs in question:

tshoot12a-4
The VM linux-a2 is currently on host esx-a1 with IP address 172.16.15.10. It’s sitting on a logical switch.

And linux-a3:

tshoot12a-5
The VM linux-a3 is currently on host esx-a3 with IP address 172.16.15.11. It’s sitting on a VLAN backed dvPortgroup.

There are a couple of interesting observations above. The first is that both VMs have a security tag applied called ‘Linux-A VMs’. The other is a bit more of an oddity – one VM is in a distributed switch VLAN backed portgroup called dvpg-a-vlan15, and the other is in a VXLAN backed logical switch. Despite this, both VMs are in the same 172.16.15.0/24 subnet.

Continue reading “NSX Troubleshooting Scenario 12”

ESG/DLR tmpfs partition fills in NSX 6.3.6 and 6.4.1

If you are running NSX 6.3.6 or 6.4.1, you should take a close look at VMware KB 57003. A newly discovered issue can result in the tmpfs partition of DLRs and ESGs from filling up, rendering the appliances unmanageable.

On a positive note, there should be no datapath impact because of a full tmpfs partition. You just won’t be able to push any configuration changes to the ESG or DLR in this state.
This occurs because of a file related to HA in /run that will slowly grow until it fills the partition. The file in question is ‘ha.cid.Out’ and contains HA diagnostic information. You can find it in the /run/vmware/vshield/cmdOut directory.

If you have a very stable environment, it’s quite possible that you’ll never run into this problem. The ha.cid.Out file is created and updated only after an HA event occurs – like a failover or split-brain recovery for example. Once the file is created, however, it receives regular updates and will inevitably grow.

Based on the rate in which the file grows, a compact size ESG or DLR has about a month after an HA event before this becomes a problem. Larger sized ESGs have more memory, and hence larger tmpfs partitions. Below is an estimate based on tmpfs partition size on each size of appliance:

All DLRs (256MB tmpfs): 4 weeks
Compact ESG (256MB tmpfs): 4 weeks
Large ESG (497MB tmpfs): 8 weeks
Quad Large ESG (1024MB tmpfs): 4 months
X-Large ESG (3.9GB tmpfs): >1 year

Unfortunately, it doesn’t appear that the ha.cid.Out file can be deleted or purged while the ESG/DLR is in operation. The file is locked for editing and the only safe way to recover is to reboot the appliance. Again, all of the features including routing and packet forwarding will continue to work just fine with a full tmpfs partition. You just won’t be able to make any changes.

Disabling ESG HA will prevent this from happening, but I’d argue that being protected by HA is more important than the potential for an ESG to become unmanageable.

You can monitor your ESG’s tmpfs partition using the show system storage CLI command:

esg-lb1.vswitchzero.net-0> show system storage
Filesystem      Size   Used   Avail   Use%   Mounted on
/dev/root       444M 366M 55M 88% /
tmpfs           497M 80K 497M 1% /run
/dev/sda2        43M 2.2M 38M 6% /var/db
/dev/sda3        27M 413K 25M 2% /var/dumpfiles
/dev/sda4        32M 1.1M 29M 4% /var/log

If you see it slowly creeping up in size at a regular interval, it would be a good idea to start planning for a maintenance window to reboot the appliance.

I can’t comment on release dates, but it’s very likely that this will be fixed next release of 6.4.x, which should out very soon. The 6.3.x fix for this may be further out, so a jump to 6.4.2 may be your best bet if this proves to a serious problem for you.

I hope this is helpful.

No Bridged Adapters in VMware Workstation

Although I only support vSphere and VMware’s enterprise products, I use VMware Workstation every day. My work laptop runs Windows 10, but I maintain a couple of Linux VMs for day to day use as well. After a large Windows 10 feature update – 1709 I believe – I noticed that my Linux VMs were booting up without any networking. Their virtual adapters were simply reporting ‘link down’.

I had not changed any of the Workstation network configuration since I had installed it and always just used the defaults. For my guest VMs, I had always preferred to use ‘Bridged’ networking rather than NAT:

wsnets-1

What I found odd was that the VMnet0 connection usually associated with bridging was nowhere to be found in the ‘Virtual Network Editor’.

wsnets-2

When trying to add a new bridged network, I’d get the following error:

wsnets-3

The exact text is:

“Cannot change network to bridged: There are no un-bridged host network adapters.”

Clearly, Workstation thinks the adapters are already bridged despite there not being any listed in the virtual network editor.

Continue reading “No Bridged Adapters in VMware Workstation”

NSX Troubleshooting Scenario 11 – Solution

Welcome to the eleventh installment of a new series of NSX troubleshooting scenarios. Thanks to everyone who took the time to comment on the first half of the scenario. Today I’ll be performing some troubleshooting and will show how I came to the solution.

Please see the first half for more detail on the problem symptoms and some scoping.

Getting Started

As you’ll recall in the first half, our fictional customer was seeing some HA heartbeat channel alarms in the new HTML5 NSX dashboard.

tshoot11a-1

After doing some digging, we were able to determine that the ESG had an interface configured for HA on VLAN 16 and that from the CLI, the edge really was complaining about being unable to reach its peer.

tshoot11a-3

You probably noticed in the first half, that the HA interface doesn’t have an IP address configured. This may look odd, but it’s fine. Even if you did specify a custom /30 IP address for HA purposes, it would not show up as an interface IP address here. Rather, you’d need to look for one specified in the HA configuration settings here:

Continue reading “NSX Troubleshooting Scenario 11 – Solution”
