Moving a FreeNAS ZFS Pool from a Physical Server to a VM using RDMs

I’ve been using FreeNAS for several years now for both block and NFS storage in my home lab with great success. For more information on my most recent FreeNAS build, you can check out the series here.

Although I’ve been quite pleased with this setup, I had to repurpose the SSDs in the box and had yet another USB boot device failure. This meant I had to reinstall FreeNAS and left me with just a single ZFS pool with a pair of 2TB mechanical drives. It just didn’t feel right to have a full system up and running for just a pair of 2TB drives when I could run them just fine in my management ESXi host. Not to mention the fact that I’ve got 224GB of RAM available there to provide for a much larger L1 ARC cache.

In part 2 of my FreeNAS build series, I looked at using VT-d to passthrough a proper LSI SAS HBA to a VM. This is really the best possible virtual FreeNAS configuration as it bypasses all of the hypervisor’s storage stack and grants direct access to the HBA and drives. I considered using this setup, but I didn’t think it was worth the extra power consumption and cooling needed for the toasty PERC H200 card I’ve been using. Since I wanted to preserve all data on the drives, RDMs seemed to be the next logical solution. This isn’t as ‘pure’ as the VT-d solution, but it still gives the VM full block access to the drives in the system. At any rate, it was worth a try!

Disclaimer: If you are using ZFS and FreeNAS for production purposes or for any critical data that you care about, using a proper physical setup is important. I wouldn’t recommend virtualizing FreeNAS or any other ZFS based storage system for anything but testing or lab purposes.

What I hoped to do was the following:

  1. Take the 2x2TB Western Digital hard drives out of the Dell T110.
  2. Re-install the 2x2TB drives in my Intel S2600 management host on the integrated SATA controller.
  3. Create a new FreeNAS virtual machine.
  4. Add the two drives to the VM as virtual mode RDMs.
  5. Import the existing ZFS volume that is striped across these two drives in FreeNAS.
  6. Re-create the iSCSI target and NFS shares and have access to all existing data in the pool! (assuming all goes well).

Creating a new FreeNAS VM

Once I got the two drives installed in my Intel S2600 management host, I created a new VM and got the FreeNAS OS installed. Below is the virtual hardware configuration I used:

Guest OS type: Other, FreeBSD 64-bit
CPUs: 2x vCPUs
Memory: 16GB (a minimum of 8GB is required)
Hard Disk: 16GB (for the FreeNAS OS boot device, a minimum of 8GB is required)
New SCSI controller: LSI Logic SAS
Network adapter type: VMXNET3
CD/DVD Drive: Mount the FreeNAS 11.2 ISO from a datastore

You’ll notice that some of the options I selected are not defaults for FreeBSD based VMs. This includes the LSI SAS adapter, and the VMware VMXNET3 NIC. LSI Parallel is the default for FreeBSD VMs, but the SAS adapter works well with all recent BSD builds. The same holds true for the VMXNET3 adapter, which has many benefits over the emulated E1000 adapter type.

Continue reading “Moving a FreeNAS ZFS Pool from a Physical Server to a VM using RDMs”

Properly Removing a LUN/Datastore in vSphere

Taking the time to remove LUNs correctly is worth the effort and prevents all sorts of complications.

This is admittedly a well-covered topic in both the VMware public documentation and in blogs, but I thought I’d provide my perspective on this as well in case it may help others. Unfortunately, improper LUN removal is still something I encounter all too often here in GSS.

Having done a short stint on the VMware storage support team about seven years back, I knew all too well the chaos that would ensue after improper LUN decommissioning. ESX 4.x was particularly bad when it came to handling unexpected storage loss. Often hosts would become unmanageable and reboots were the only way to recover. Today, things are quite different. VMware has made many strides in these areas, including better host resiliency in the face of APD (all paths down) events, as well as introducing PDL (permenant device loss) several years back. Despite these improvements, you still don’t want to yank storage out from under your hypervisors.

Today, I’ll be decommissioning an SSD drive from my freenas server, which will require me to go through these steps.

Step 1 – Evacuate!

Before you even consider nuking a LUN from your SAN, you’ll want to ensure all VMs, templates and files have been migrated off. The easiest way to do this is to navigate to the ‘Storage’ view in the Web Client, and then select the datastore in question. From there, you can click the VMs tab. If you are running 5.5 or 6.0, you may need to go to ‘Related Objects’ first, and then Virtual Machines.

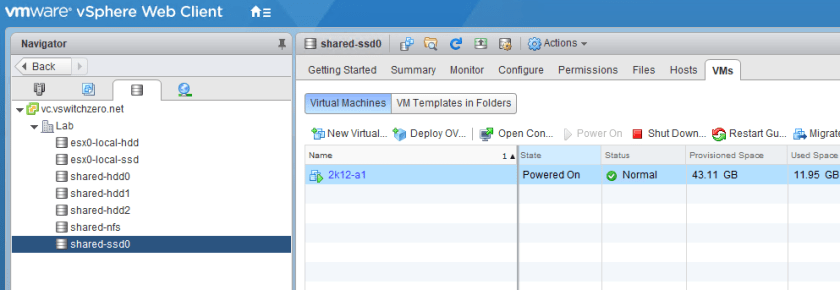

One VM still resides on shared-ssd0. It’ll need to be migrated off.

In my case, you can see that the datastore shared-ssd still has a VM on it that will need to be migrated. I was able to use Storage vMotion without interrupting the guest.

It’s easy to forget about templates as they aren’t visible in the default datastore view. Be sure to check for them as well.

Templates do not show up in the normal view, so be sure to check specifically for these as well. Remember, you can’t migrate templates. You’ll need to convert them to VMs first, then migrate them and convert them back to templates. I didn’t care about this one, so just deleted it from disk.

Continue reading “Properly Removing a LUN/Datastore in vSphere”

Dell BMC Problems with FreeNAS/FreeBSD

I’ve recently been working on a scripting project to orchestrate the power up and power down of my entire lab environment. As part of this, I’ve been using IPMI commands to power on physical servers in the correct order and at the correct time.

As I discussed in my recent FreeNAS Build Series, I’ve been using a Dell T110 tower server for storage purposes in my lab. Being an entry level server, the T110 has a very trimmed down iDRAC BMC (Baseboard Management Controller) that doesn’t have a dedicated NIC or a web based management page. Despite it’s limitations, I can still use the IPMI protocol to gather information and to run simple tasks, like powering it on and off.

pi@raspberrypi:~ $ ipmitool -I lanplus -H -U root -P "vmware" lan print 1
Set in Progress : Set Complete
Auth Type Support : NONE MD2 MD5 PASSWORD
Auth Type Enable : Callback : MD2 MD5
 : User : MD2 MD5
 : Operator : MD2 MD5
 : Admin : MD2 MD5
 : OEM :
IP Address Source : Static Address
IP Address :
Subnet Mask :
MAC Address : b8:ac:6f:92:0b:e9
SNMP Community String : public
IP Header : TTL=0x40 Flags=0x40 Precedence=0x00 TOS=0x10
Default Gateway IP :
Default Gateway MAC : 00:00:00:00:00:00
Backup Gateway IP :
Backup Gateway MAC : 00:00:00:00:00:00
802.1q VLAN ID : Disabled
802.1q VLAN Priority : 0

Above you can see a simple IPMI query using the ipmitool application available for Linux and other operating systems. In this example, I’m pulling the network configuration of the BMC.

I hadn’t had a need to use IPMI with the Dell T110 until recently, but was surprised to see that the BMC was not responding to ping. Thinking the BMC was just hung up, I did a cold power cycle and double checked the configuration. After several frustrating reboots, it became clear to me that FreeNAS/FreeBSD was not playing nicely with the Dell BMC. It appeared that it would work just fine until the FreeBSD kernel used by FreeNAS started loading. As soon as the bge driver claimed the BCM5722 card, the BMC couldn’t be accessed over the network.

To make things even more frustrating, it would not recover when the machine was shut down or rebooted. I could only get the BMC on the network again after doing a cold power-cycle of the server, or after going into the BMC configuration, changing something, and rebooting.

After doing some digging, I came across a thread on the FreeBSD forum that described my symptoms exactly. I’m not the only one who has run into this issue with Dell BMCs and shared Broadcom adapters in FreeBSD. This thread then led me to FreeBSD bug 196944 regarding a regression in the Broadcom bge driver. It looks like this has actually been broken for some time – all the way back to FreeBSD 9.2 – and is still a problem in 11.1 as well.

A few people were able to work around this issue by recompiling the kernel with the Broadcom driver from back in FreeBSD 9.1. I really didn’t feel comfortable doing this level of tinkering with FreeNAS – especially since any subsequent FreeNAS patches would likely just break it again.

Thankfully, someone in comment 6 of the bug describes a potential workaround that involves nothing more than enabling the PXE bootrom of the onboard Broadcom adapter in the BIOS. This was reported as having mixed results on varying models of Dell servers, but I was willing to give it a try. After changing my onboard NIC from ‘Enabled’ to ‘Enabled with PXE’ in the BIOS, the problem disappeared!

If you have this problem – give it a shot. It’s a simple workaround and the only down side is the extra 2-3 seconds at boot up.

Using FreeNAS for NSX FTP Backups

FreeNAS is a very powerful storage solution and is quite popular with those running vSphere and NSX home labs. I recently built a new FreeNAS 9.10 system and wanted to share some of my experiences getting NSX FTP backups going.

To get this configured, I found the FTP section of the FreeNAS 9.10 documentation to be very useful. I’d definitely recommend giving it a read through as well.

Before Getting Started

Before enabling the FTP service in FreeNAS, you’ll want to decide where to put your NSX backups. In theory, you can dump them in any of your volumes or datasets but you may want to set aside a specific amount of storage space for them. To do this in my lab, I created a dedicated dataset with a 60GB quota for FTP purposes. I like to separate it out to ensure nothing else competes with the backups and the amount of space available is predictable.


If you plan to use FTP for more than just NSX, it would be a good idea to create a subdirectory in the dataset or other location you want them to reside. In my case, I created a directory called ‘NSX’ in the dataset:

[root@freenas] ~# cd /mnt/vol1/dataset-ftp
[root@freenas] /mnt/vol1/dataset-ftp# mkdir NSX
[root@freenas] /mnt/vol1/dataset-ftp# ls -lha
total 2
drwxr-xr-x 3 root wheel 3B Sep 7 09:23 ./
drwxr-xr-x 5 root wheel 5B Sep 5 16:13 ../
drwxr-xr-x 2 root wheel 2B Sep 7 09:23 NSX/
[root@freenas] /mnt/vol1/dataset-ftp#

Setting Permissions

One step that is often missed during FreeNAS FTP configuration is to set the appropriate permissions. The proftpd service in FreeNAS uses the built in ftp user account. If that user does not have the appropriate permissions to the location you intend to use, backups will not write successfully.

Since I used a dedicated dataset for FTP called dataset-ftp, I can easily set permissions recursively for this location from the UI:


As shown above, we want to set both the owner user and group to ftp. Because I created the NSX directory within the dataset, I’ll be setting permission recursively as well.

If I log into FreeNAS via SSH or console again, I can confirm that this worked because the dataset-ftp mount is now owned by ftp as is the NSX subdirectory within.

[root@freenas] /mnt/vol1# ls -lha
total 14
drwxrwxr-x  5 root  wheel     5B Sep  5 16:13 ./
drwxr-xr-x  4 root  wheel   192B Sep  5 16:09 ../
drwxr-xr-x  3 ftp   ftp       3B Sep  7 09:23 dataset-ftp/
drwxrwxr-x  5 root  wheel    13B Jul 29 16:23 dataset-static/
drwxrwxr-x  2 root  wheel     2B Sep  5 16:13 dataset-tftp/
[root@freenas] /mnt/vol1# ls -lha dataset-ftp
total 2
drwxr-xr-x  3 ftp   ftp       3B Sep  7 09:23 ./
drwxrwxr-x  5 root  wheel     5B Sep  5 16:13 ../
drwxr-xr-x  2 ftp   ftp       2B Sep  7 13:46 NSX/

The Easy Option – Anonymous FTP Access

Setting up anonymous FTP access requires the least amount of effort and is usually sufficient for home lab purposes. I would strongly discourage the use of anonymous access in a production or security sensitive environment as anyone on the network can access the FTP directory configured.

First, configure FTP under services in the FreeNAS UI:


As you’d obviously expect, the ‘Allow Anonymous Login’ option needs to be checked off in order for anonymous FTP to work. The ‘Allow Local Users Login’ option should be unchecked if you don’t want to use authentication. It’s also important to select the ‘Path’ to the FTP root directory you wish to use. In my example above, any anonymous FTP logins will go directly into the NSX subdirectory I created earlier.

If you want to use FTP for more than just NSX backups, you can make the path the root of the dataset and NSX can be configured to use a specific subdirectory within as I’ll show later.

Once that’s done, you can enable the FTP service. It’ll be off by default:


Now we can do some basic tests to ensure FTP is functional. You can use an FTP client like FileZilla if you like, but I’m just going to use the good old Windows FTP command line utility. First, let’s make sure we can login anonymously:

C:\Users\mike.LAB\Desktop>ftp freenas.lab.local
Connected to freenas.lab.local.
220 ProFTPD 1.3.5a Server (freenas.lab.local FTP Server) [::ffff:]
User (freenas.lab.local:(none)): anonymous
331 Anonymous login ok, send your complete email address as your password
230 Anonymous access granted, restrictions apply

A return status of 230 is what we’re looking for here and this seems to work fine. Keep in mind that it technically doesn’t matter what password you enter for the anonymous username. You can just hit enter, but I usually just re-enter the username. It’s not necessary to enter anything that resembles an email address.

Next, let’s make sure we have permission to write to this location. I’ll do an FTP ‘PUT’ of a small text file:

ftp> bin
200 Type set to I
ftp> put C:\Users\mike.LAB\Desktop\test.txt
200 PORT command successful
150 Opening BINARY mode data connection for test.txt
226 Transfer complete
ftp: 14 bytes sent in 0.00Seconds 14000.00Kbytes/sec.
ftp> dir
200 PORT command successful
150 Opening ASCII mode data connection for file list
-rw-r----- 1 ftp ftp 14 Sep 7 13:56 test.txt
226 Transfer complete
ftp: 65 bytes received in 0.01Seconds 10.83Kbytes/sec.

As seen above, the file was written successfully with a 226 return code. The last step I’d recommend doing before configuring NSX is to confirm the relative path after login from the FTP server’s perspective. Because I stayed in the FTP root directory, it simply lists a forward slash as shown below:

ftp> pwd
257 "/" is the current directory

NSX expects this path as you’ll see shortly. Now that we know anonymous FTP is working, we can configure the FTP server from the NSX appliance UI:


As you can see above, I’ve entered ‘anonymous’ as the user name, and entered the same as the password string. The backup directory is the location you want NSX to write backups to. If you had a specific directory you wanted to use within the FTP root directory that was configured, you could enter it here. For example, /backups. As mentioned earlier, my FTP root directory is the NSX directory so it’s not necessary in my case.

Two other pieces of information are mandatory in NSX – the filename prefix and the pass phrase. The filename prefix is just that – a string that is appended to the beginning of the filename. It usually makes sense to identify the environment or NSX manager by name here. This is especially important if you have multiple NSX managers all backing up to one location. The pass phrase is a password used to encrypt the backup binary file generated. Be sure not to lose this or you will not be able to restore your backups.

After hitting OK, we can then do a quick backup to ensure it can connect and write to the location configured.


If everything was successful, you should then see your file listed in the backup history pane at the bottom of the view:


FTP User Authentication

Anonymous FTP may be sufficient for most home lab purposes, but there are several advantages to configuring users and authentication. FTP by nature transmits in plain text and is not secure, but adding authentication provides a bit more control over who can access the backups and allows the direction of users to specific FTP locations. This can be useful if you plan to use your FTP server for more than just NSX.

Before we begin, let’s create a user in FreeNAS that we’ll use for NSX backups:


Some of the key things you’ll need to ensure is that the user’s primary group is the built-in ftp group used by proftpd and that the user’s home directory is where you want them to land after log in. In my example above, I’m creating a user called nsxftpuser with a home directory of the FTP root directory I configured earlier.

Keep in mind that by default FreeNAS will create a new home directory hence the wording “Create Home Directory In:”. I expect the home directory to actually be /mnt/vol1/dataset-ftp/nsxftpuser and not /mnt/vol1/dataset-ftp/.

Next, we need to modify the FTP settings slightly:


Since we want to use local user authentication, we need to check ‘Allow Local User Login’. I’ve also unchecked ‘Allow Anonymous Login’ to ensure only authenticated users can now login.

In order to test that we’re dumped into the user’s home directory after login, I changed the FTP default path one level back to the root of the dataset.

As a last step, it’s necessary to stop and start the FTP service again for the changes to take effect.

Before we test this new user, let’s double check that the home directory is located where we want it:

[root@freenas] /mnt/vol1/dataset-ftp# ls -lha
total 18
drwxr-xr-x  4 ftp         ftp       4B Sep  7 14:42 ./
drwxrwxr-x  5 root        wheel     5B Sep  5 16:13 ../
drwxr-xr-x  2 ftp         ftp       5B Sep  7 14:43 NSX/
drwxr-xr-x  2 nsxftpuser  ftp      10B Sep  7 14:42 nsxftpuser/

As you can see above, we now have a home directory matching the username in the FTP root location.

Now let’s try to log in using the nsxftpuser account:

C:\Users\mike.LAB\Desktop>ftp freenas.lab.local
Connected to freenas.lab.local.
220 ProFTPD 1.3.5a Server (freenas.lab.local FTP Server) [::ffff:]
User (freenas.lab.local:(none)): nsxftpuser
331 Password required for nsxftpuser
230-Welcome to FreeNAS FTP Server
230 User nsxftpuser logged in

So far so good, now let’s PUT a file to ensure we have write access to this location:

ftp> bin
200 Type set to I
ftp> put C:\Users\mike.LAB\Desktop\test.txt
200 PORT command successful
150 Opening BINARY mode data connection for test.txt
226 Transfer complete
ftp: 14 bytes sent in 0.00Seconds 14000.00Kbytes/sec.
ftp> dir
200 PORT command successful
150 Opening ASCII mode data connection for file list
-rw-r----- 1 nsxftpuser ftp 14 Sep 7 14:45 test.txt
226 Transfer complete
ftp: 67 bytes received in 0.00Seconds 22.33Kbytes/sec.

Success! The last thing we need to do is modify the NSX configuration slightly to use the new user account:


And sure enough, the backup was successful at 18:47 GMT:


If I look at the files from the FreeNAS SSH session, I can see both the encrypted backup binary and metadata properties file located in the user’s home directory:

[root@freenas] /mnt/vol1/dataset-ftp/nsxftpuser# ls -lha lab*
-rw-r-----  1 nsxftpuser  ftp   2.4M Sep  7 14:47 lab18_47_33_Thu07Sep2017
-rw-r-----  1 nsxftpuser  ftp   227B Sep  7 14:47 lab18_47_33_Thu07Sep2017.backupproperties

Scheduling Backups

Once we know NSX backups are functional, it’s a good idea to get them going on a schedule.

An important consideration to keep in mind when deciding when to schedule is when your vCenter backups are done. Because NSX relies heavily upon the state of the vCenter Server inventory and objects, it’s a good idea to try to schedule your backups at around the same time. That way, if you ever need to restore, you’ll have vCenter and NSX objects in sync as closely as possible.


In my lab, I have it backing up every night at midnight, but depending on how dynamic your environment is, you may want to do it more frequently.

Another important point to note is that NSX Manager doesn’t handle large numbers of backups very well in the backup directory. The UI will throw a warning once you get up to 100 backups and eventually you’ll get a slow or non-responsive UI in the Backup and Restore section. To get around this, you can manually archive older backups to another location outside of the FTP root directory or create a script to move older files to another location.

The only piece that I haven’t gotten to work with FreeNAS yet is SFTP encrypted backups using TLS. Once I get that going well, I’ll hopefully write up another post on the topic.

Thanks for reading! If you have any questions please leave a comment below.
